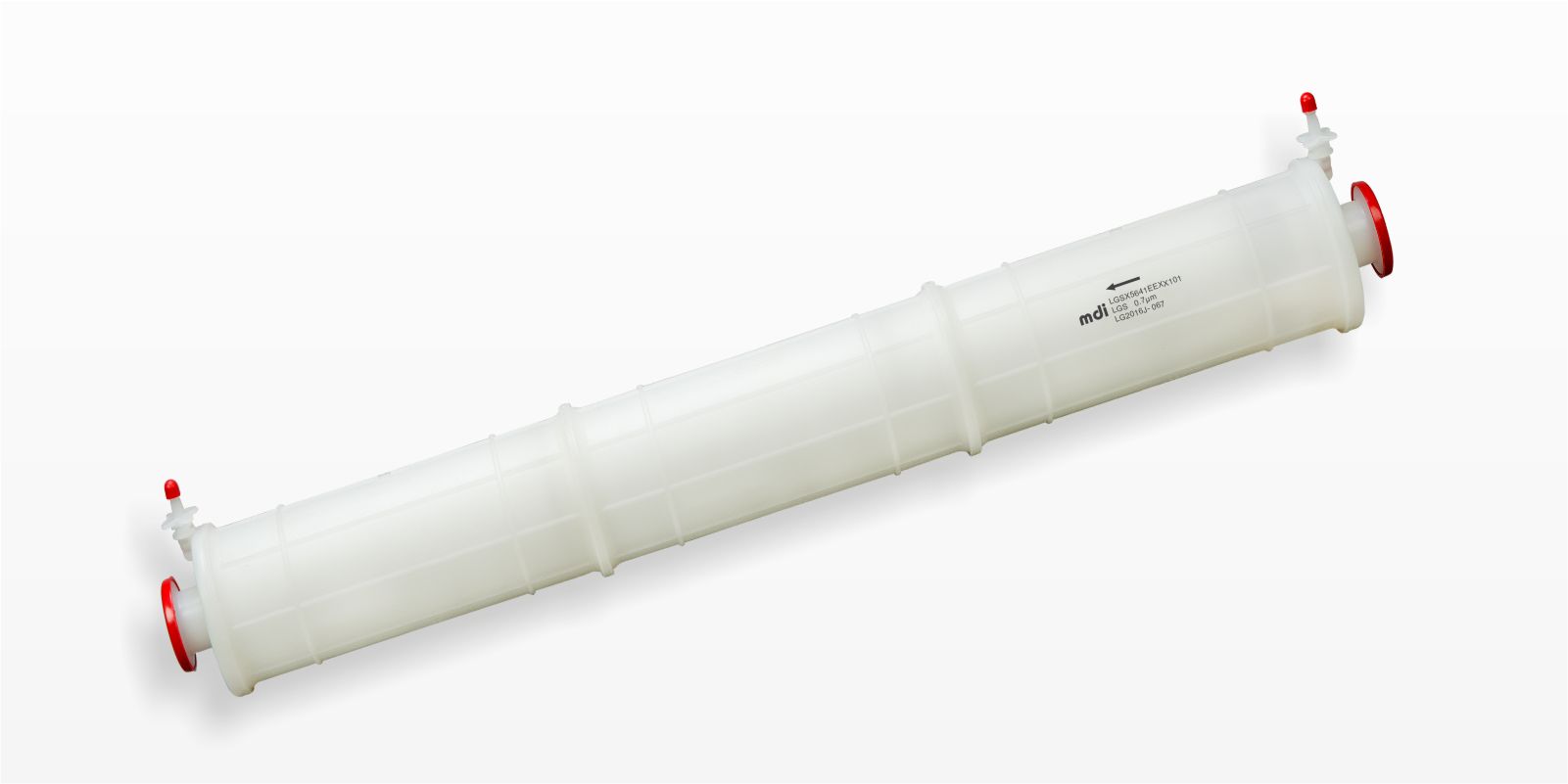

ClariCap GS 5, 10, 20, 30

ClariCap® GS Large

MDI ClariCap® GS Microglassfiber Capsule Filters are multilayered, high throughput filters, specially designed for turbid and difficult to filter solutions. The microglassfiber medium is designed to retain colloidal particles and for removal of deformable and nondeformable particles and microorganisms from liquids.

The polypropylene layer downstream of microglassfiber layers prevents media migration. The high dirt holding capacity, biochemical inertness, adsorption and high wet strength of the filtration medium makes it suitable for clarification and prefiltration of wide range of aqueous, non-aqueous and biologicals solutions.

  • Very high particulate retention efficiency
  • High throughput
  • High heat resistance
  • Wide chemical compatibility
  • No media migrating
  • Biologically inert
  • Easy installation
  • Endotoxin level certified to be <0.25 EU/ml
  • Widest range of end connections
  • Products available for total scalability from a few ml to thousands of liters
  • Sterilizable by Autoclaving or Ethylene Oxide

  • Pre-filtration of high value difficult to filter drug solutions
  • Precipitate removal in protein processing and plasma fractions
  • Removal of un-dissolved buffer salts and cell culture media
  • Prefiltration of serum and other viscous biologicals
  • Polishing of turbid solution
  • Chemical Processing
  • Beverage clarification

Construction
Pore size 0.7µm, 1µm, 1.5µm, 2µm
Filter Media Multilayered Microglassfiber
Body and Core Polypropylene
Size
Length
5″ 10″ 20″ 30″
Dimension (End to End) – ¾” Sanitary Flange I/O
214 mm 335 mm — —
Dimension (End to End) – 1½” Sanitary Flange I/O
205 mm 330 mm 600 mm 855 mm
Dimension (End to End) – ½” Single Step Hose Barb
218 mm 336 mm 630 mm 890 mm
Dimensions (End to End) Inline Capsule Filters – 1½” Sanitary Flange Inlet ½” Single Step Hose Barb Outlet
212 mm 334 mm 620 mm 870 mm
Dimension (End to End) – 1″ Hose Barb I/O
— 405 mm 635 mm 895 mm
Operational
Operational Radius (with Vent/ Drain)
80 mm 80 mm 80 mm 80 mm
Dimension (End to End) – 3/8″ Hose Barb I/O
211 mm 332 mm 634 mm 885 mm
Vent and Drain ¼” Hose Barb with Silicone “O” ring
Max. Operating Temperature 80 °C @ < 30 psi (2 Kg/cm²)
Max. Differential Pressure 60 psi (4 Kg/cm²) @ 30 °C
Sterilization By Gas Sterilizable by Ethylene Oxide
Sterilization By Autoclave Autoclavable at 125 °C for 30 minutes, 30 cycles and it cannot be inline steam sterilized
Assurance
Shelf Life 3 years after EO Sterilization
Toxicity Passes Biological Reactivity tests, In Vivo, as per USP <88> for Class VI plastics
Bacterial Endotoxin Aqueous extracts exhibit < 0.25 EU/ml as established by Limulus Amebocyte Lysate (LAL) Test as per USP <85>
Bioburden Bioburden level is < 1000 cfu/filter device as per ISO 11737-1 : 2018
Non Fiber Releasing Passes test as per USP and comply with USFDA 21 CFR Part 210.3(b)(6) for fiber release
Particle Release The filtrate complies with USP <788> test for particulate matter in injections
Indirect Food Additive All Polypropylene components meet the FDA Indirect Food Additive requirements cited in 21 CFR 177.1520
Extractables with WFI Passes NVR test as per USP <661>
Good Manufacturing Practice These products are manufactured in a facility which adheres to Good Manufacturing Practices.
Oxidizable Substances Within limits as specified in USP <1231>
Quality Management System ISO-9001 Certified
USFDA DMF No. 015554

Type
ClariCap® GS LGSX
Size
Code
5″ 53
10″ 54
20″ 55
30″ 56
Pore Size
Code
0.7µm 41
1µm 05
1.5µm 14
2µm 15
I/O Connection
Connection Code
1½” Sanitary Flange** E
3/4” Sanitary Flange S
3/8” Hose Barb I
Single Step ½” Hose Barb Q
1” Hose Barb* Z
X
Inline/T-line
Code
Inline X
T-line* T
Sterility
Code
Non Sterile 1
EO Sterile 2
Pack Size
Code
1 01

*1” Hose Barb and T-line are not available in 5″ capsule filter

**T-line Capsule filter are available with 1½” Sanitary Flange I/O Connection only

**3/4″ Sanitary Flange end connection is available only in 5″ and 10″ capsule filters

Example :

LGSX 54 14 QQ X X 1 01

Example for Non Sterile: LGSX5414QQXX101                                         Example for EO Sterile: LGSX5414QQXX201
