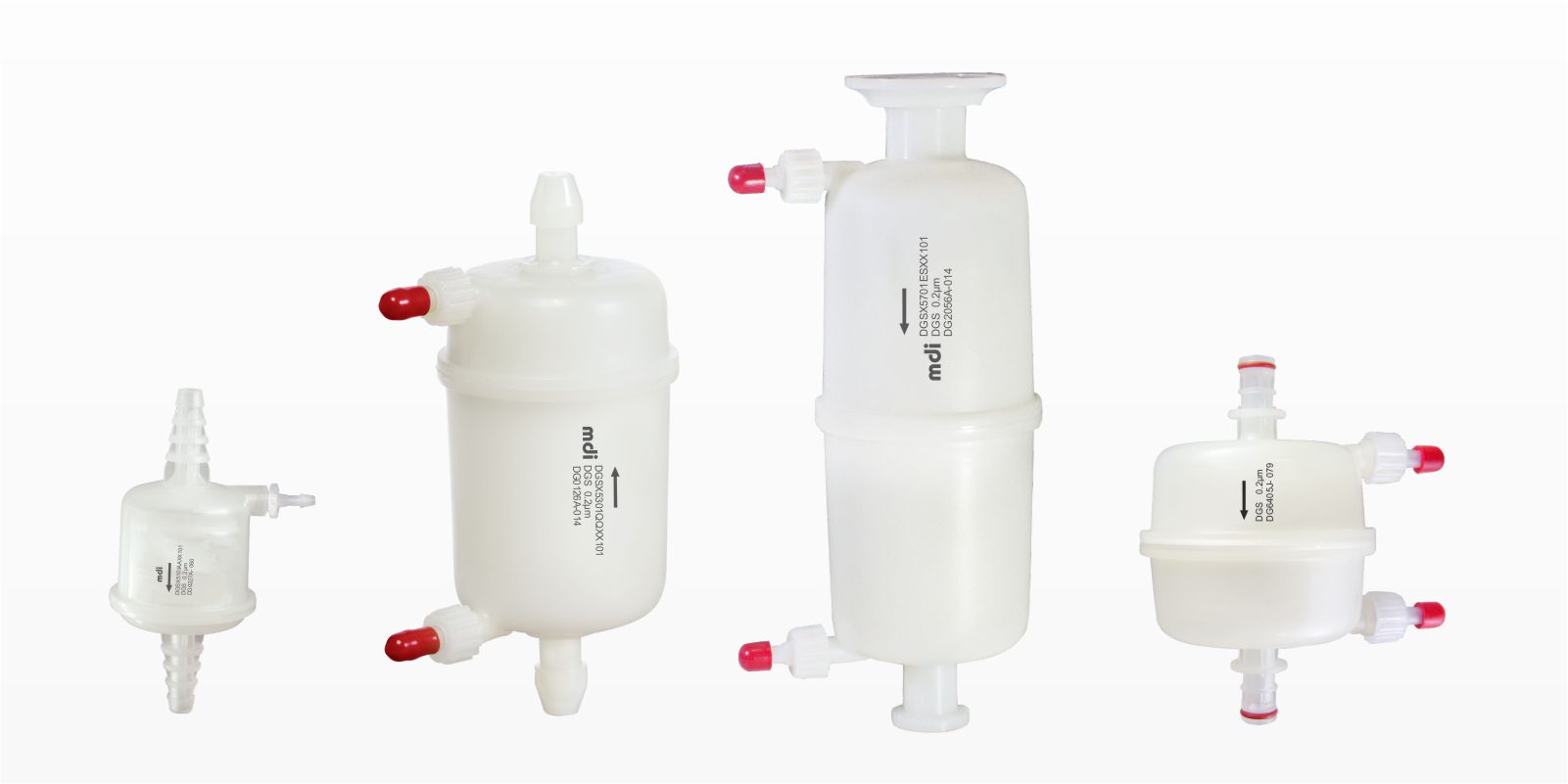

ClariCap GS 1, 2, 5, 8

ClariCap® GS Small

MDI ClariCap® GS Microglassfiber Capsule Filters are multilayered, high throughput filters, specially designed for turbid and difficult to filter solutions. The microglassfiber medium is designed to retain colloidal particles and for removal of deformable and nondeformable particles and microorganisms from liquids.

The polypropylene layer downstream of microglassfiber layers prevents media migration. The high dirt holding capacity, biochemical inertness, adsorption and high wet strength of the filtration medium makes it suitable for clarification and prefiltration of wide range of aqueous, non-aqueous and biologicals solutions.

  • High Flow Rates
  • High Throughput
  • Very High Retention
  • Compact Design

  • Pre-filtration of cell culture media
  • Pre-filtration of serum solutions
  • Clarification of cell harvest supernatants
  • Pre-filtration of protein solutions
  • Pre-filtration of high value difficult to filter drug solutions
  • Pre-filtration of difficult to filter small volume parenterals
  • Polishing of turbid solutions

Construction
Pore size 0.7µm, 1µm, 1.5µm, 2µm
Filter Media Multilayered Microglassfiber
Body and Core Polypropylene
Size
Size
1″ 2″ 5″ 8″
Effective Filtration Area (Nominal)
150cm² 400cm² 800cm² 1200cm²
Dimension (End to End) – Quick Connector
100 mm 111 mm 163 mm 212 mm
Dimension (End to End) – ¼” SHB
94 mm 122 mm 172 mm 223 mm
Dimension (End to End) – ¾” Sanitary Flange Inlet I/O
85 mm 104 mm 155 mm 206 mm
Dimension (End to End) – 1½” Sanitary Flange I/O
92 mm 112 mm 164 mm 216 mm
Dimension (End to End) – ½” Hose Barb I/O
90 mm 112 mm 162 mm 214 mm
Dimension (End to End) – ½” Single Step Hose Barb I/O
— 115 162 mm 218 mm
Operational Radius (with Vent/ Drain)
30 mm 65 mm 65 mm 65 mm
Vent and Drain ¼” Hose Barb with double Silicone “O” rings for 2″, 5″ and 8″ only
Accuracy
Dimensions (End to End) Inline Capsule Filters – 1½” Sanitary Flange Inlet ½” Single Step Hose Barb Outlet
— 112 165 mm 216 mm
Operational
Max. Operating Temperature 80 °C @ < 30 psi (2 Kg/cm²)
Max. Differential Pressure < 60 psi (4 Kg/cm²) @ 30° C
Sterilization EO Sterilized
Sterilization By Autoclave Autoclavable at 125 °C for 30 minutes, 30 cycles and it cannot be inline steam sterilized
Shelf Life 3 years after EO sterilization
Assurance
Toxicity Passes Bioreactivity test, In Vivo, as per USP for Class VI plastics
Bacterial Endotoxin Aqueous extracts exhibit < 0.25 EU/ml as established by Limulus Amebocyte Lysate (LAL) Test
Bioburden Bioburden level is < 1000 cfu/filter device as per ISO 11737-1 : 2018
Fiber Release Passes test as per USP and comply with USFDA 21 CFR Part 210.3 (b)(6) for fiber release
Particle Release The filtrate complies with USP <788> test for particulate matter in injections
Indirect Food Additive All Polypropylene components meet the FDA Indirect Food Additive requirements cited in 21 CFR 177.1520
Extractables with WFI Passes test as per USP
Good Manufacturing Practice These products are manufactured in a facility which adheres to Good Manufacturing Practices.
Oxidizable Substances Within limits as specified in USP
Quality Management System ISO-9001 Certified
USFDA DMF No. 015554

Type
ClariCap® GS DGSX
Size
Size Code
1″ 51
2″ 52
5″ 53
8″ 57
Pore Size
Pore Size Code
0.7µm 41
1µm 05
1.5µm 14
2µm 15
I/O Connection
Connection Code
¼” SHB A
¼” MNPT B
¼” BSP (19 TPI) M
¼” BSP (19 TPI) with O-ring P
¼” BSP F
½” MNPT* C
½”Hose Barb D
1½” Sanitary Flange E
¾” Sanitary Flange S
Quick Connector J
Single Step ½” Hose Barb* Q
Female Luer Lock U
Male Luer Slip** W
3/8″ Hose Barb* I
3/16″ Hose Barb*** N
¼” Single Step Hose Barb R
X
Bell
Yes**** B
No X
Bell with cover**** C
Sterility
Code
Non Sterile 1
EO Sterile 2
Pack Size
Pack Size Code
1 01

*1” Capsule Filters are not available with ½” Single step Hose Barb and ½” MNPT

**Male luer slip is available only in 1” capsule filter as outlet

***3/16″ Hose Barb end connection is available in:

  • 1″ and 2″ capsule filters as inlet and outlet
  • 5″ capsule filters as outlet only

**** Bell and bell with cover is available with :

  • ½” HB outlet connections in 1”, 2”, 5” and 8” capsule filters
  • ¼” SHB outlet connection in 1” capsule filters only

Example :

DGSX 57 41 DD X X 1 01

Example for Non Sterile: DGSX5741DDXX101                                                            Example for EO Sterile: DGSX5741DDXX201
