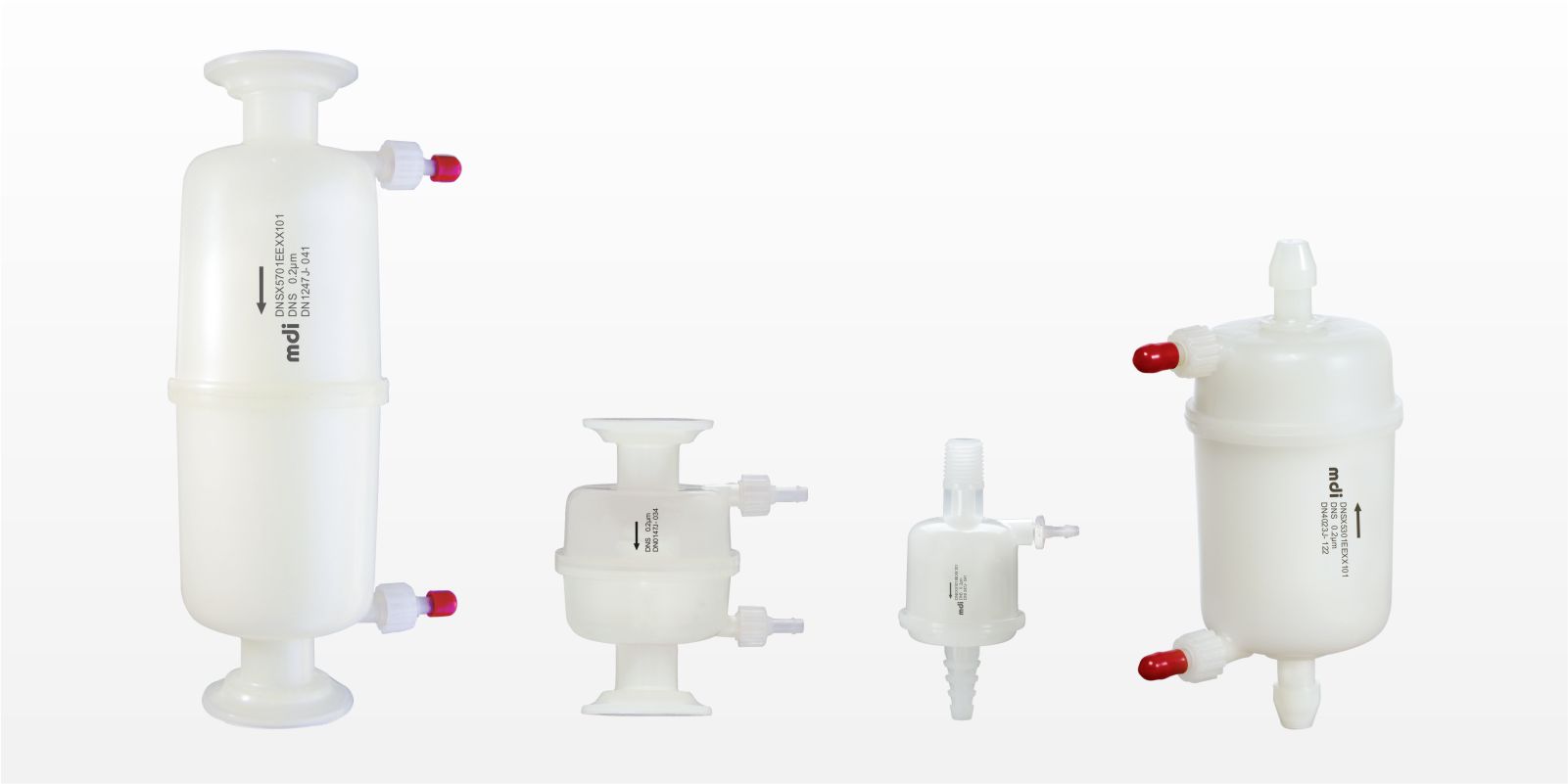

AseptiCap NL NS 1, 2, 5, 8

AseptiCap® NL/NS Small

MDI AseptiCap NL/NS Nylon 66 membrane capsule filters are sterilizing grade filters offering absolute retention, wide chemical compatibility, and very low hold up volumes.

  • Single Layered: AseptiCap NL
  • Multiple Layered:AseptiCap NS

  • Absolute retention
  • 100% integrity tested
  • Very low hold up volume in filters
  • High flow rates
  • Serial construction with prefilter for higher throughput with fouling streams
  • Bioburden maintained below 1000 cfu/device
  • Endotoxin level certified to be <0.25 EU/ml
  • Widest range of end connections
  • Products available for total scalability from a few ml to thousands of liters
  • Total traceability through unique serial number for each filter
  • Individual certificate of quality for each device
  • Sterilizable by EO gas or autoclaving



  • Sterilizing filtration of stability batches in formulation development tabs.
  • Sterilization of Compatible solvents and chemicals.

Construction
Membrane Nylon 66
Final Filter Pore Size
0.2µm 0.45µm
Support Layers Polyester
Body and Core Polypropylene
Prefilter Pore Size (In case of AseptiCap NS)
0.8µm, 0.45µm 0.8µm
Size
Size
1″ 2″ 5″ 8″
Effective Filtration Area (Nominal) – AseptiCap NL
250cm² 900cm² 1800cm² 2700cm²
Dimension (End to End) – 1½” Sanitary Flange Inlet ½” Single Step Hose Barb Outlet
— 111 mm 165 mm 216 mm
Effective Filtration Area (Nominal) – AseptiCap NS
200cm² 700cm² 1400cm² 2100cm²
Dimension (End to End) – ¾” Sanitary Flange Inlet I/O
85 mm 104 mm 155 mm 206 mm
Dimension (End to End) – 1½” Sanitary Flange I/O
92 mm 112 mm 164 mm 216 mm
Dimension (End to End) – ½” Hose Barb I/O
90 mm 112 mm 162 mm 214 mm
Dimension (End to End) – ½” Single Step Hose Barb I/O
— 115 mm 162 mm 218 mm
Operational Radius (with Vent/ Drain)
40 mm 65 mm 65 mm 65 mm
Vent and Drain
— ¼” Hose Barb with Silicone “O” rings
Integrity Testing / Retention
Microbial Retention
LRV >7 for Brevundimonas diminuta (ATCC 19146) per cm² LRV >7 for Serratia marcescens (ATCC 14756) per cm²
Bubble Point (with 50% IPA)
> 17psi (1.19Kg/cm²) > 11psi (0.77Kg/cm²)
Operational
Max. Operating Temperature 80 °C @ < 30 psi (2 Kg/cm²)
Max. Differential Pressure 60 psi (4 Kg/cm²) @ 30 °C
Sterilization By Gas Sterilizable by Ethylene Oxide
Sterilization By Autoclave Autoclavable at 125 °C for 30 minutes and it cannot be in-line steam sterilized.
Shelf Life 3 years after EO sterilization
Assurance
Toxicity Passes Bioreactivity test, In Vivo, as per USP <88> for Class VI plastics
Bacterial Endotoxin Aqueous extracts exhibit < 0.25 EU/ml as established by Limulus Amebocyte Lysate (LAL) Test
as per USP <85>
Bioburden Bioburden level is < 1000 cfu/filter device as per ISO 11737-1 : 2018
Non Fiber Releasing Passes test as per USP and comply with USFDA 21 CFR Part 210.3(b)(3) for fiber release
Indirect Food Additive All Polypropylene components meet the FDA Indirect Food Additive requirements cited in 21 CFR 177.1520
Extractables with WFI Passes NVR test as per USP <661>
Good Manufacturing Practice These products are manufactured in a facility which adheres to Good Manufacturing Practices.
Oxidizable Substances Within limits as specified in USP <1231>
Particle Shedding Passes USP test for particulates in injectables.
TOC/Conductivity at 25 °C Meets the WFI requirements of USP <643> for Total Organic Carbon and USP <645> for Water Conductivity after a 3 liter of WFI flush
Quality Management System ISO-9001 Certified
USFDA DMF No. 015554

Type
AseptiCap NL DNLX
AseptiCap NS
(0.45 μm Upstream)		 DNSX
AseptiCap NS
(0.8μm Upstream)		 DNS5
Size
Code
1″ 51
2″ 52
5″ 53
8″ 57
Pore Size
Code
0.2µm 01
0.45µm 02
I/O Connection
Connection Code
¼” SHB A
¼” MNPT B
¼” BSP F
½” MNPT** C
½” Hose Barb D
1½” Sanitary Flange E
¾” Sanitary Flange S
Quick Connector J
Single Step ½” Hose Barb** Q
Female Luer Lock U
Male Luer Slip**** W
3/8″ Hose Barb** I
3/16″ Hose Barb*** N
¼” Single Step Hose Barb R
X
Bellb
Code
Yes B
No Bell X
Bell with cover C
Sterility
Code
Non Sterile 1
EO Sterile 2
Pack Size
Code
1 01

*0.45μm Upstream is only available in 0.2μm Pore Size
**1” Capsule Filters are not available with ½” Single step Hose Barb and ½” MNPT
***3/16″ Hose Barb end connection is available in:

  • 1″ and 2″ capsule filters as inlet and outlet
  • 5″ capsule filters as outlet only

****Male luer slip is available only in 1” capsule filter as outlet

b: Bell is available with:

  • ½” Hose Barb outlet connections in 1″, 2″, 5″ and 8″ capsule filters
  • ¼” SHB outlet connection in 1″ capsule filters only

Example :

DNS5 52 01 DD X X 1 01

Example for Non Sterile: DNS55201DDXX101

Example for EO Sterile: DNS55201DDXX201
