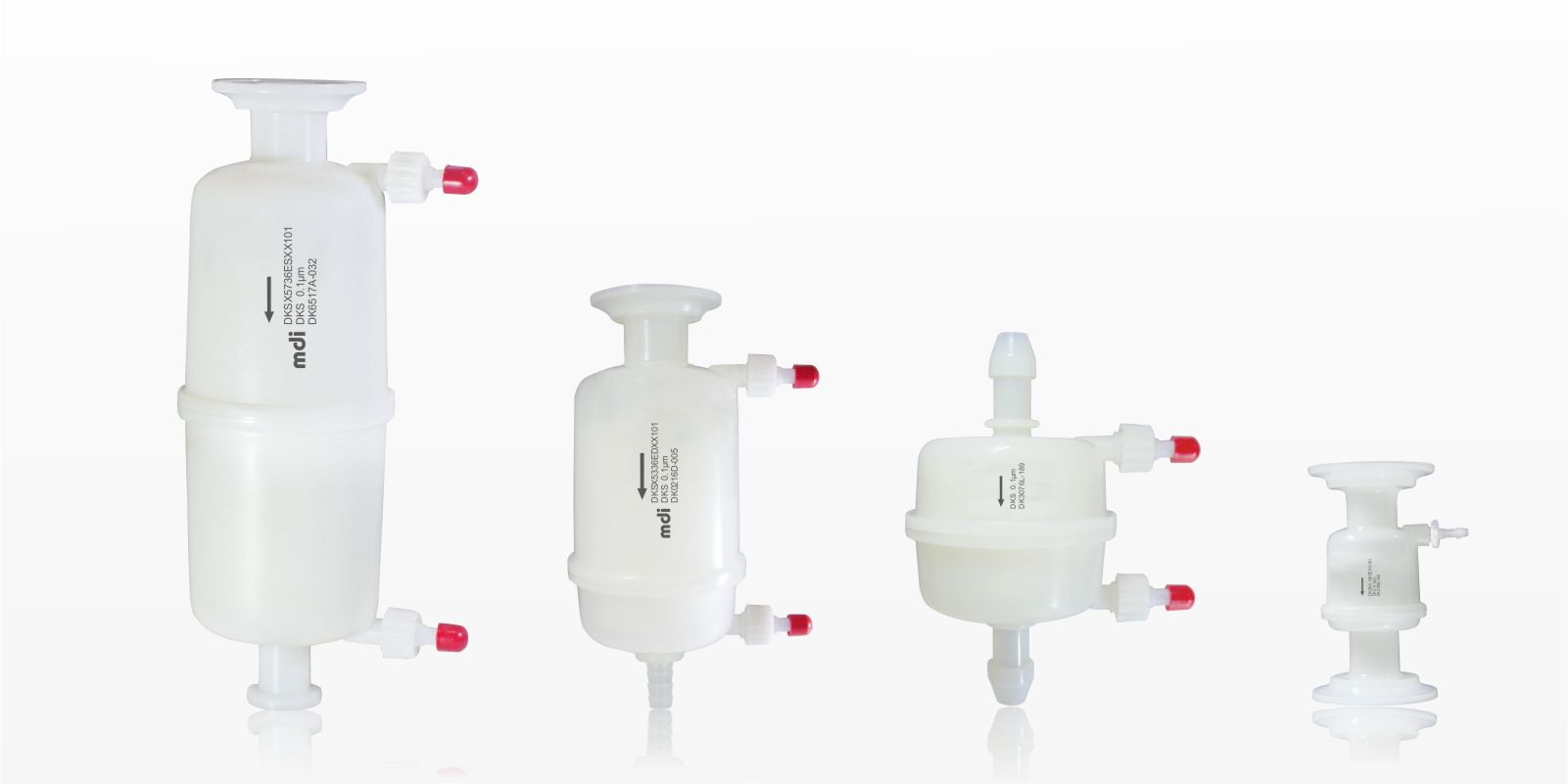

0.1µm AseptiCap® KS Small
MDI AseptiCap® KS PES membrane capsule filters are validated for mycoplasma removal and are used for sterile media filtration in mammalian cell culture. The filters meet key process requirements such as high retention efficiency, very high protein recoveries, extremely low extractables, high throughputs, wide chemical compatibility etc.
| Consistent and Reliable Quality: | AseptiCap® capsule filters are produced with ISO 9001 certified quality management systems. |
| Regulatory Compliance: | Meet all pharmacopeial and compendia requirements and are registered with USFDA DMF #015554 |
| Low Protein Binding: | Results in increased overall product yield |
| High Throughputs: | Translates to lower filtration costs, less number of filter changes and overall economy of operations. |
| Low Extractables: | Mean less addition to impurity profile of the biological product from the filters. |
Sterile Filtration of:
- Cell culture media
- Cell culture media containing serum
- Media additives
- Final product concentrates
| Construction | |||||
| Membrane | 0.1 μm Hydrophilic PES | ||||
| Upstream Membrane | 0.2 μm or 0.45 μm Hydrophilic PES | ||||
| Support Layers | Polyester | ||||
| Plastic parts | Polypropylene | ||||
| Size | |||||
| Size |
|
||||
| Effective Filtration Area (Nominal) |
|
||||
| Dimension (End to End) – ½” Hose Barb I/O |
|
||||
| Dimension (End to End) – 1½” Sanitary Flange Inlet ½” Single Step Hose Barb Outlet |
|
||||
| Dimension (End to End) – ¾” Sanitary Flange I/O |
|
||||
| Dimension (End to End) – 1½” Sanitary Flange I/O |
|
||||
| Dimension (End to End) – ½” Single Step Hose Barb I/O |
|
||||
| Clean water Flow Rate @ 10 psi with ½” Hose Barb Connection |
|
||||
| Operational Radius (with Vent/ Drain) |
|
||||
| Vent and Drain |
|
||||
| Integrity Testing / Retention | |||||
| Bubble Point | > 26 psi (1.82 Kg/cm²) with 50% IPA
> 65 psi (4.56 Kg/cm²) with Water |
||||
| Bacterial Retention | LRV > 7 for Acholeplasma laidlawii ATCC 23206 per cm² of filter area | ||||
| Operational | |||||
| Max. Operating Temperature | 80 °C @ < 30 psi (2 Kg/cm²) | ||||
| Max. Differential Pressure | 60 psi (4 Kg/cm²) @ 30 °C | ||||
| pH Compatibility | Compatible with pH range of 1-10 | ||||
| Sterilization By Gas | Sterilizable by Ethylene Oxide | ||||
| Sterilization By Autoclave | Autoclavable at 125°C for 30 minutes, 25 cycles and it cannot be in-line steam sterilized | ||||
| Shelf Life | 3 years after EO sterilization | ||||
| Assurance | |||||
| Toxicity | Passes Bioreactivity test, In Vivo, as per USP <88> for Class VI plastics | ||||
| Cytotoxicity | Passes Biological Reactivity Tests, In Vitro, USP <87> for cytotoxicity | ||||
| Bacterial Endotoxin | Aqueous extracts exhibit < 0.25 EU/ml as established by Limulus Amebocyte Lysate (LAL) Test | ||||
| Bioburden | Bioburden level is < 1000 cfu/filter device as per ISO 11737-1 : 2018 | ||||
| Non Fiber Releasing | Passes test as per USP and comply with USFDA 21 CFR Part 210.3(b)(6) for fiber release | ||||
| TOC and Conductivity | Meets the WFI requirements of USP for TOC <643> and Conductivity <645> after a 3 liter flush | ||||
| Particle Release | Passes USP test for particulates in injectables | ||||
| Indirect Food Additive | All Polypropylene components meet the FDA Indirect Food Additive requirements cited in 21 CFR 177.1520 | ||||
| Extractables with WFI | Passes NVR test as per USP <661> | ||||
| Good Manufacturing Practice | These products are manufactured in a facility which adheres to Good Manufacturing Practices. | ||||
| Oxidizable Substances | Within limits as specified in USP <1231> | ||||
| Particle Shedding | Passes USP test for particulates in injectables. | ||||
| Quality Management System | ISO-9001 Certified | ||||
| USFDA | DMF No. 015554 | ||||
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
* 1” Capsule Filters are not available with ½” Single step Hose Barb and ½” MNPT
** Male luer slip is available only in 1” capsule filter as outlet
*** 3/16″ Hose Barb end connection is available in:
- 1″ and 2″ capsule filters as inlet and outlet
- 5″ capsule filters as outlet only
**** Bell and bell with cover is available with :
- ½” HB outlet connections in 1”, 2”, 5” and 8” capsule filters
- ¼” SHB outlet connection in 1” capsule filters only
Example:
| DKSX | 57 | 36 | DD | X | X | 1 | 01 |
Example for Non Sterile: DKSX5736DDXX101 Example for EO Sterile: DKSX5736DDXX201
