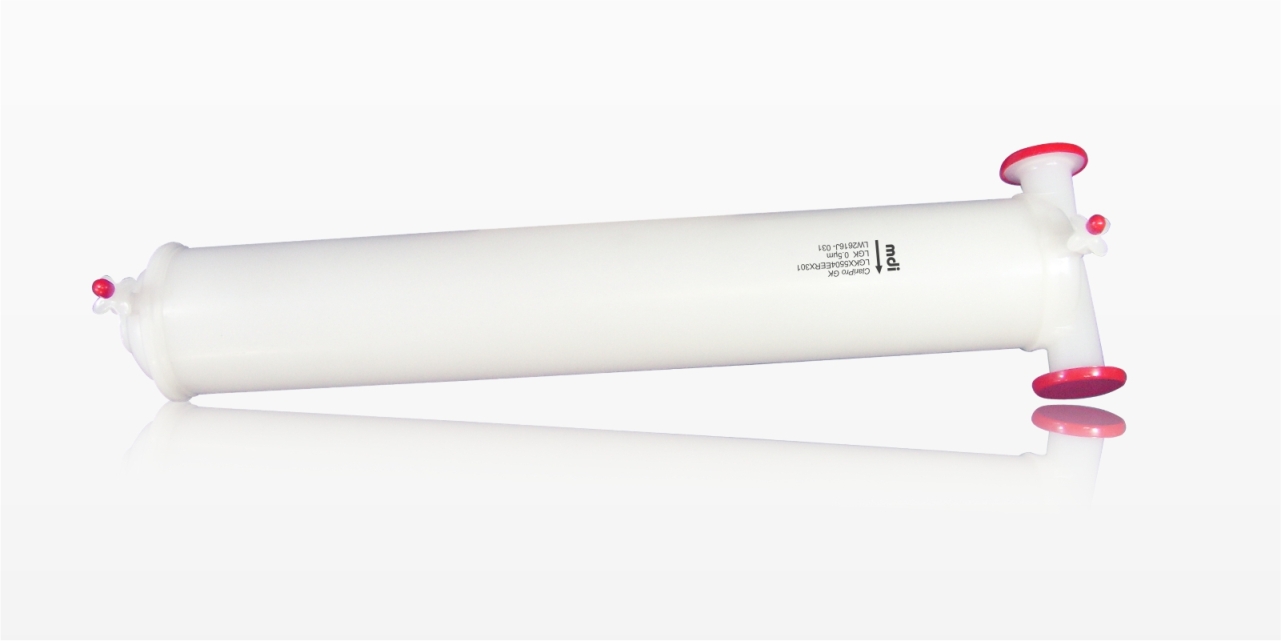

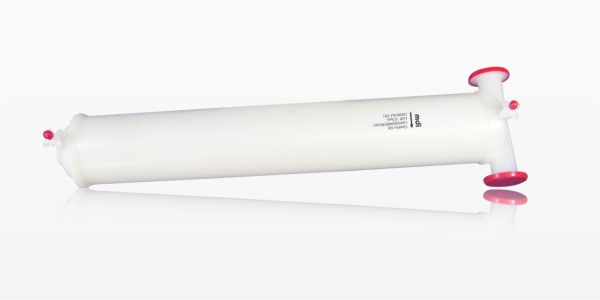

ClariPro® GK-γ Large
MDI ClariPro® GK- γ gamma sterilizable hydrophilic PES membrane capsule filters are ready to use, disposable filtration devices. These filters are specially designed filters incorporating a microglassfiber upstream layer and a downstream PES membrane layer and are used as pre- filters in biopharmaceutical process development laboratories for difficult to filter solutions.
- High Flow Rates
- High Throughput
- Very High Retention
- Low Protein Binding
- Compact Design
- Precipitate removal post viral inactivation
- Pre-filtration of serum solutions
- Clarification of cell harvest supernatants
- Polishing of turbid solutions
| Construction | |||||
| Membrane | Hydrophilic PES | ||||
| Pore size | 0.1µm, 0.2µm, 0.5µm | ||||
| Prefilter Membrane | Microglassfiber | ||||
| Support Layers | Polyester | ||||
| Body and Core | Polypropylene | ||||
| Size | |||||
| Size |
|
||||
| Effective Filtration Area (Nominal) |
|
||||
| Dimension (End to End) – 1½” Sanitary Flange Inlet ½” Hose Barb Outlet |
|
||||
| Dimension (End to End) – ¾” Sanitary Flange I/O |
|
||||
| Dimension (End to End) – 1½” Sanitary Flange I/O |
|
||||
| Dimension (End to End) – ½” Single Step Hose Barb I/O |
|
||||
| Dimension (End to End) – 1″ Hose Barb I/O |
|
||||
| Operational Radius (with Vent/ Drain) |
|
||||
| Dimension (End to End) – 3/8″ Hose Barb I/O |
|
||||
| Vent and Drain | ¼” Hose Barb with Silicone “O” ring | ||||
| Operational | |||||
| Max. Operating Temperature | 80 °C @ < 30 psi (2 Kg/cm²) | ||||
| Max. Differential Pressure | < 60 psi (4 Kg/cm²) @ 30 °C | ||||
| Sterilization By Irradiation | Gamma Irradiatiable up to 50 kGy. These filters should not be autoclaved or in-line steam sterilized. | ||||
| Shelf Life | 2 years after gamma sterilization | ||||
| Assurance | |||||
| Toxicity | Passes Bioreactivity test, In Vivo, as per USP for Class VI plastics | ||||
| Bacterial Endotoxin | Aqueous extracts exhibit < 0.25 EU/ml as established by Limulus Amebocyte Lysate (LAL) Test | ||||
| Bioburden | Bioburden level is < 1000 cfu/filter device as per ISO 11737-1 : 2018 | ||||
| Non Fiber Releasing | Passes test as per USP and comply with USFDA 21 CFR Part 210.3 (b)(6) for fiber release | ||||
| Particle Release | The filtrate complies with USP <788> test for particulate matter in injections | ||||
| Indirect Food Additive | All Polypropylene components meet the FDA Indirect Food Additive requirements cited in 21 CFR 177.1520 | ||||
| Extractables with WFI | Passes test as per USP | ||||
| Good Manufacturing Practice | These products are manufactured in a facility which adheres to Good Manufacturing Practices. | ||||
| Oxidizable Substances | Within limits as specified in USP | ||||
| Quality Management System | ISO-9001 Certified | ||||
| USFDA | DMF No. 015554 | ||||
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
* T-line is not available in 5” Capsule Filter
* T-line Capsule Filter are available with 1½” Sanitary Flange I/O Connection only
** Gamma sterilized filters cannot be gamma irradiated again
***3/4″ Sanitary Flange end connection is available only in 5″ and 10″ capsule filters
****1″ Hose Barb is not available in 5″ capsule filters
Example :
| LGKX | 54 | 04 | EE | R | T | 1 | 01 |
Example for Non Sterile: LGKX5404EERX101 Example for Gamma Sterile: LGKX5404EEXX301
