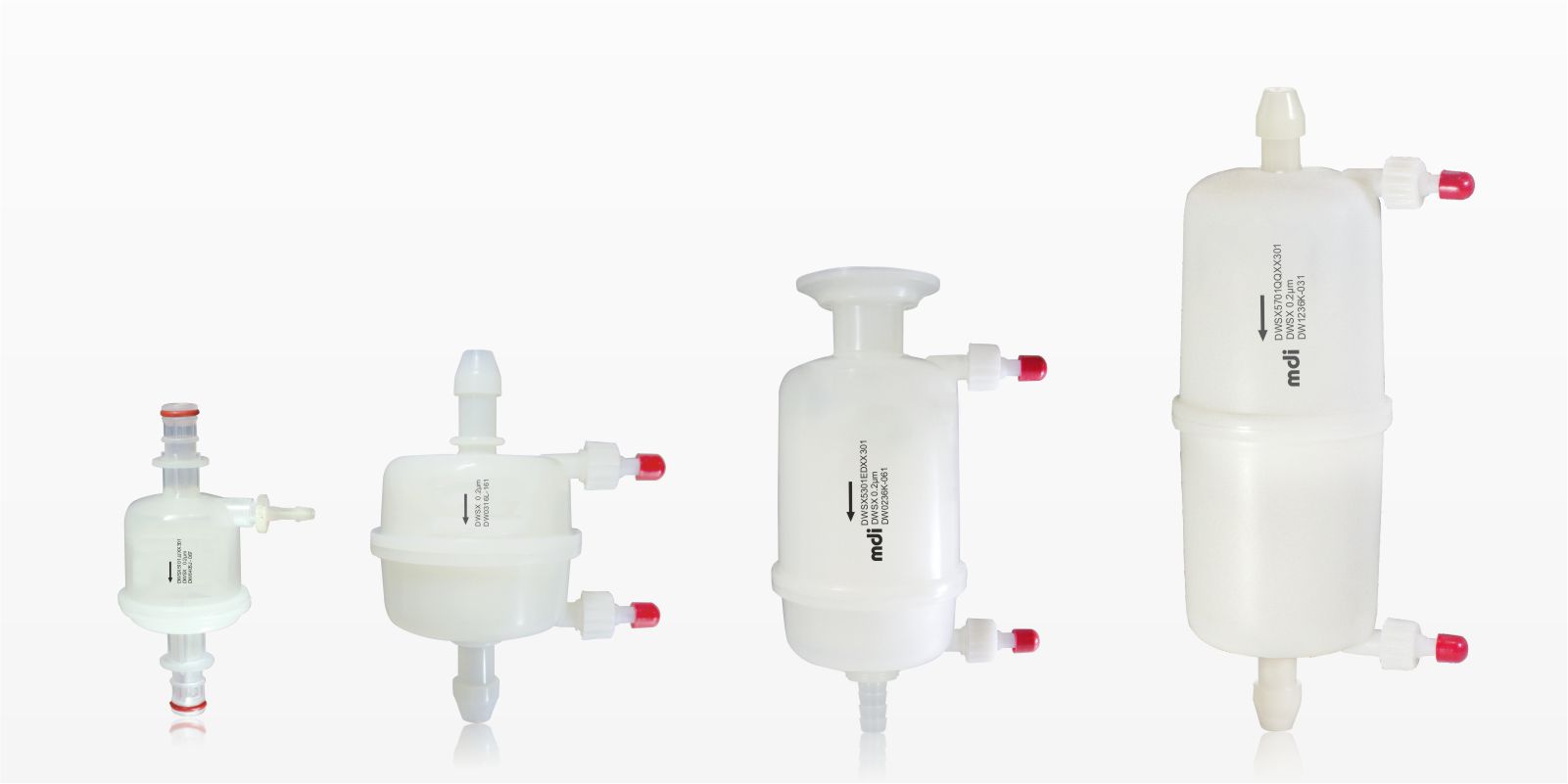

0.2µm AseptiCap® WL/WS-γ Small
MDI AseptiCap® WS-γ are low protein binding hydrophilic PVDF gamma sterilizable membrane inline capsule filters, designed for sterile filtration of very small fluid volumes in formulation and process development labs.
These capsule filters are validated to meet compendia and regulatory requirements and are well characterized. They meet key process requirements such as absolute retention efficiency, extremely low extractables, high throughputs, wide chemical compatibility and other important characteristics.
- Absolute retention
- 100% integrity tested
- Low protein binding
- Low extractables
- Very low hold up volume
Sterile Filtration of:
- Antibodies
- Protein Solutions
- Buffers
- Heat labile additives
- Vaccine concentrates
- Small Volume Parenterals
| Construction | |||||
| Membrane | Hydrophilic PVDF | ||||
| Final Filter Pore Size | 0.2μm | ||||
| Prefilter Pore Size | 0.8µm or 0.45µm Hydrophilic PVDF | ||||
| Support Layers | Polyester | ||||
| Plastic parts | Polypropylene | ||||
| Size | |||||
| Size |
|
||||
| Effective Filtration Area (Nominal) |
|
||||
| Dimensions (End to End) – 1½” Sanitary Flange I/O |
|
||||
| Dimension (End to End) – ½” Hose Barb I/O |
|
||||
| Dimension (End to End) – ¼” SHB I/O |
|
||||
| Dimension (End to End) – ¾” Sanitary Flange Inlet I/O |
|
||||
| Dimension (End to End) – ½” Single Step Hose Barb I/O |
|
||||
| Dimension (End to End) – 1½” Sanitary Flange Inlet ½” Single Step Hose Barb Outlet |
|
||||
| Operational Radius (with Vent/ Drain) |
|
||||
| Integrity Testing / Retention | |||||
| Bubble Point | > 50 psi (3.51 Kg/cm² ) with Water | ||||
| Microbial Retention | LRV >7 for Brevundimonas diminuta (ATCC 19146) per cm² | ||||
| Operational | |||||
| Max. Operating Temperature | 80 °C @ < 30 psi (2 Kg/cm²) | ||||
| Max. Differential Pressure | 60 psi (4 Kg/cm²) @ 30 °C | ||||
| Sterilization By Irradiation | Gamma Irradiatiable up to 50 kGy. Gamma sterilized capsule filters must not be autoclaved or in-line steam sterilized. | ||||
| Shelf Life | 2 years after Gamma Sterilization | ||||
| Hold-up Volume |
|
||||
| Assurance | |||||
| Toxicity | Passes Bioreactivity test, In Vivo, as per USP <88> for Class VI plastics | ||||
| Cytotoxicity | Passes Biological Reactivity Tests, In vitro, USP <87> for Cytotoxicity | ||||
| Bacterial Endotoxin | Aqueous extracts exhibit < 0.25 EU/ml as established by Limulus Amebocyte Lysate (LAL) Test as per USP <85> | ||||
| Bioburden | Bioburden level is < 1000 cfu/filter device as per ISO 11737-1 : 2018 | ||||
| Non Fiber Releasing | Passes test as per USP and comply with USFDA 21 CFR Part 210.3(b)(6) for fiber release | ||||
| TOC and Conductivity | Meets the WFI requirements of USP <643> for Total Organic Carbon and USP <645> for Water Conductivity after a 3 liter of WFI flush | ||||
| Particle Release | The filtrate complies with USP <788> test for particulate matter in injections | ||||
| Indirect Food Additive | All Polypropylene components meet the FDA Indirect Food Additive requirements cited in 21 CFR Part 177.1520 | ||||
| Extractables with WFI | Passes NVR test as per USP <661> | ||||
| Oxidizable Substances | Passes test as per USP <1231> | ||||
| Quality Management System | ISO-9001 Certified | ||||
| USFDA | DMF No. 015554 | ||||
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*1” Capsule Filters are not available with ½” Single step Hose Barb and 3/8″ Hose Barb
**Male luer slip is available only in 1” capsule filter as outlet
***3/16″ Hose Barb end connection is available in:
- 1″ and 2″ capsule filters as inlet and outlet
- 5″ capsule filters as outlet only
****Gamma irradiated capsule filters cannot be gamma sterilized again
*****Bell is available with:
- ½” Hose Barb outlet connections in 1”, 2”, 5” and 8” capsule filters
- ¼” SHB outlet connection in 1” capsule filters only
Example:
| DWSX | 53 | 01 | R | X | 1 | 01 |
Example for Non Sterile: DWSX5301QQRX101 Example for Gamma Sterile: DWSX5301QQXX301
