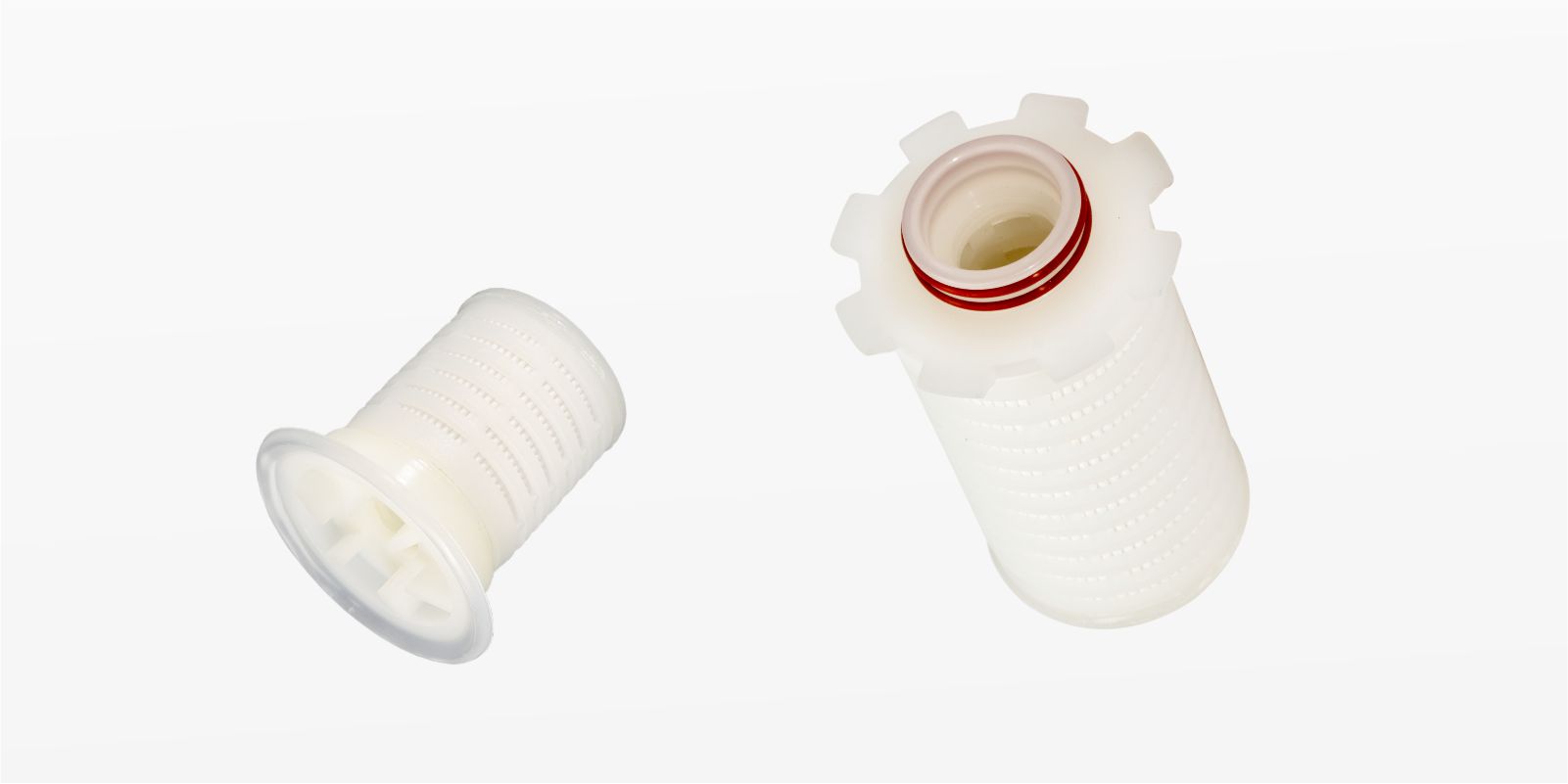

ClariSure® GP Mini
MDI ClariSure® GP Mini cartridge filters are specially designed multilayered precision filtration devices. These cartridge filters act as throughput enhancers, specially in case of difficult to filter solutions.
A microglassfiber upstream layer retains very fine colloidal particles and a downstream polypropylene layer checks any kind of media migration.
| Consistent and Reliable Quality: | ClariSure® GP cartridge filters are produced with ISO 9001-2008 certified quality management systems. |
| Regulatory Compliance: | Meet all pharmacopeial and compendia requirements and are registered with USFDA DMF #015554 |
| High Throughputs: | Translates to lower filtration costs, less number of filter changes and overall economy of operations. |
| Total Traceability | Unique identification number is laser etched on each other. |
- Pre-filtration of difficult to filter solutions
- Pre-filtration of difficult to filter SVP like Oxytetracycline
| Construction | |||
| Pore size | 0.5µm, 1µm, 2µm | ||
| Filter Media | Microglassfiber | ||
| Support Layers | Polypropylene | ||
| Body and Core | Polypropylene | ||
| Size | |||
| Size |
|
||
| Effective Filtration Area |
|
||
| Operational | |||
| Max. Operating Temperature | 80 °C @ < 30 psi (2 Kg/cm²) | ||
| Max. Differential Pressure | 50 psi (3.5 Kg/cm²) @ 25 °C | ||
| Sterilization | Autoclavable/In-line Steam Sterilizable at 121°C for 30 minutes, 30 Cycles. | ||
| Assurance | |||
| Toxicity | Passes Bioreactivity test, In Vivo, as per USP for Class VI plastics | ||
| Non Fiber Releasing | Passes test as per USP and comply with USFDA 21 CFR Part 210.3(b)(6) for fiber release | ||
| Indirect Food Additive | All Polypropylene components meet the FDA Indirect Food Additive requirements cited in 21 CFR 177.1520 | ||
| Extractables with WFI | Passes test as per USP | ||
| Good Manufacturing Practice | These products are manufactured in a facility which adheres to Good Manufacturing Practices. | ||
| Oxidizable Substances | Within limits as specified in USP | ||
| Particle Shedding | Passes USP test for particulates in injectables | ||
| Quality Management System | ISO-9001 Certified | ||
| USFDA | DMF No. 015554 | ||
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*G0 adapter code is not available with any elastomer. Please mention XX in place of elastomer code while ordering
**Adapter code F0 is available only in 5” cartridge filters
Example:
| CPGP | 50 | 05 | E0 | SS | 1 | 01 |
Example for Non Sterile: CPGP5005E0SS101
