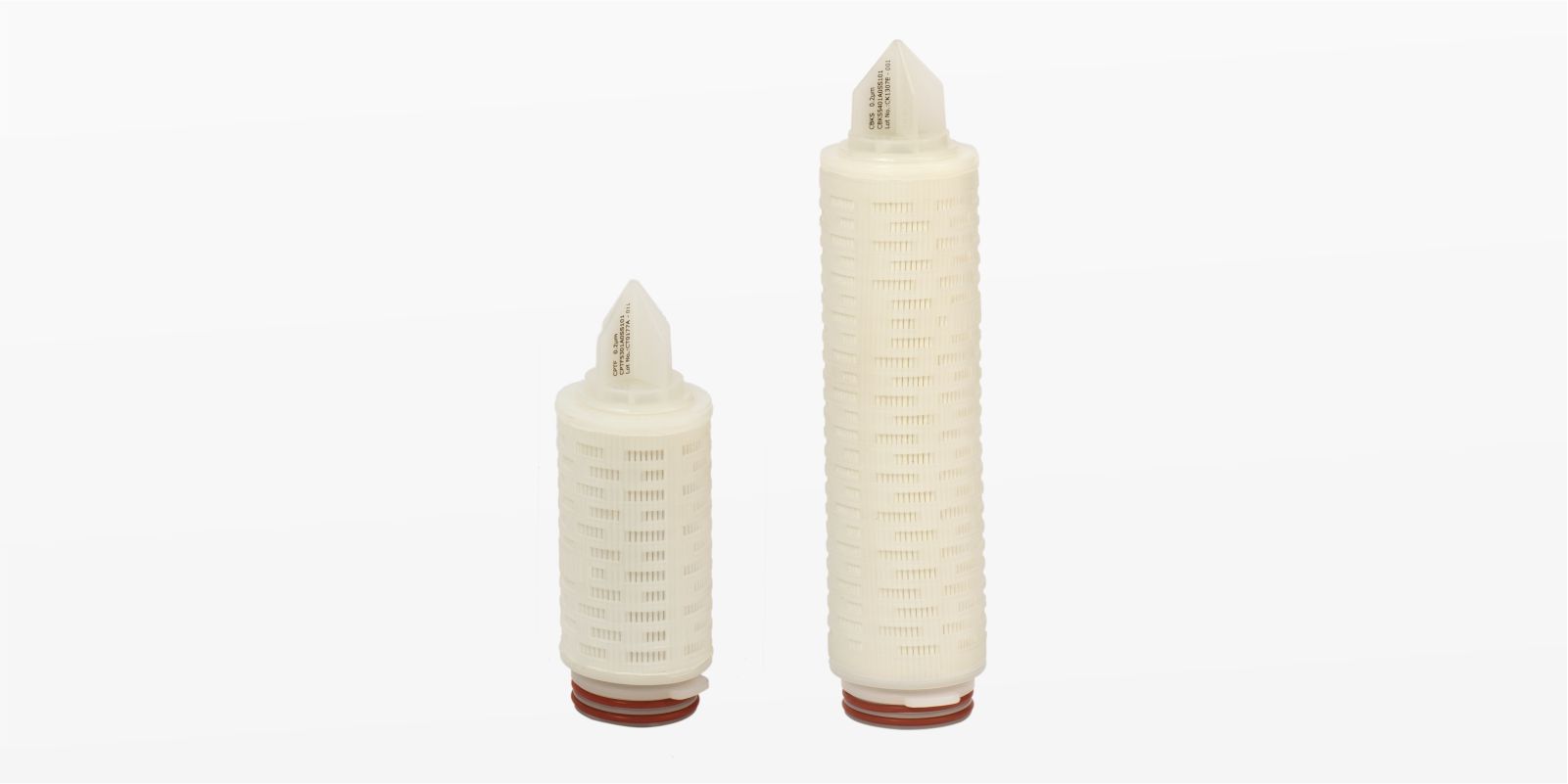

ClariSure® GP Standard
MDI ClariSure® GP Mini cartridge filters are specially designed multilayered precision filtration devices. These cartridge filters act as throughput enhancers, specially in case of difficult to filter solutions.
A microglassfiber upstream layer retains very fine colloidal particles and a downstream polypropylene layer checks any kind of media migration.
- High throughputs
- Long service life
- Non-toxic material of construction
- Sterilizable by Autoclaving/Steaming in place (SIP)
- Pre-filtration of difficult to filter solutions
- Pre-filtration of difficult to filter SVP like Oxytetracycline
| Construction | |||||
| Filter Media | Microglassfiber | ||||
| Support Layers | Polypropylene | ||||
| Body and Core | Polypropylene | ||||
| Size | |||||
| Size |
|
||||
| Effective Filtration Area (Nominal) |
|
||||
| Operational | |||||
| Max. Operating Temperature | 80 °C @ < 30 psi (2 Kg/cm²) | ||||
| Max. Differential Pressure | 50 psi (3.5 Kg/cm²) @ 25 °C | ||||
| Sterilization | Autoclavable/In-line Steam Sterilizable at 121°C for 30 minutes, 30 Cycles. | ||||
| Assurance | |||||
| Toxicity | Passes Bioreactivity test, In Vivo, as per USP for Class VI plastics | ||||
| Non Fiber Releasing | Passes test as per USP and comply with USFDA 21 CFR Part 210.3(b)(6) for fiber release | ||||
| Indirect Food Additive | All Polypropylene components meet the FDA Indirect Food Additive requirements cited in 21 CFR 177.1520 | ||||
| Extractables with WFI | Passes test as per USP | ||||
| Good Manufacturing Practice | These products are manufactured in a facility which adheres to Good Manufacturing Practices. | ||||
| Oxidizable Substances | Within limits as specified in USP | ||||
| Particle Shedding | Passes USP test for particulates in injectables | ||||
| Quality Management System | ISO-9001 Certified | ||||
| USFDA | DMF No. 015554 | ||||
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*FV is available in Adapter Code A0 (7P) and A1 (7P without fin) only
**Size 5″ is available in Code A0 (7P) and A1 (7P without fin) only
Example :
| CPGP | 56 | 05 | A0 | SV | 1 | 01 |
Example for Non Sterile: CPGP5605A0SV101
