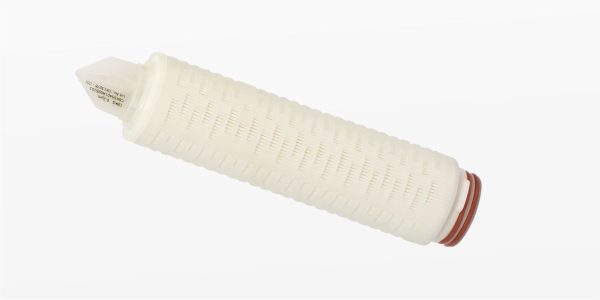

ClariSure® DP Standard
MDI ClariSure® DP polypropylene cartridge filters have been designed for medium efficiency particle removal applications from liquids and air/gases. Primarily used for pre-filtration purposes, these cartridge filters can also be used for terminal filtration in non-critical applications. The all polypropylene construction imparts the filter with very wide chemical compatibility.
MDI ClariSure® DP cartridge filters are available in different pore sizes to suit a multitude of applications.
- Wide Chemical Compatibility
- High Flow Rates
- Non Media Migrating
| Retention Efficiency: | 99.9% |
| Consistent and Reliable Quality: | ClariSure® cartridge filters are produced with ISO 9001-2008 certified quality management systems. |
- Filtration of feed water to RO plants
- Filtration of re-circulation water in Ampoule/ Vial washing
- Clarification of Buffers
| Construction | |||||
| Pore size | 1μm, 1.5μm, 3μm, 5μm,10μm, 20μm, 30μm, 40μm | ||||
| Filter Media | Polypropylene | ||||
| Support Layers | Polypropylene | ||||
| Body and Core | Polypropylene | ||||
| Size | |||||
| Size |
|
||||
| Effective Filtration Area (Nominal) |
|
||||
| Operational | |||||
| Max. Operating Temperature | 80 °C @ < 30 psi (2 Kg/cm²) | ||||
| Max. Differential Pressure | 50 psi (3.5 Kg/cm²) @ 25 °C | ||||
| Assurance | |||||
| Toxicity | Passes Bioreactivity test, In Vivo, as per USP <88> for Class VI plastics | ||||
| Non Fiber Releasing | Passes test as per USP and comply with USFDA 21 CFR Part 211.72 for fiber release | ||||
| Indirect Food Additive | All Polypropylene components meet the FDA Indirect Food Additive requirements cited in 21 CFR 177.1520 | ||||
| Extractables with WFI | Passes test as per USP | ||||
| Good Manufacturing Practice | These products are manufactured in a facility which adheres to Good Manufacturing Practices. | ||||
| Oxidizable Substances | Within limits as specified in USP | ||||
| Particle Shedding | Passes USP test for particulates in injectables | ||||
| Quality Management System | ISO-9001 Certified | ||||
| USFDA | DMF No. 015554 | ||||
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
*FV is available in Adapter Code A0 (7P) and A1 (7P without fin) only
**Size 5″ is available in Code A0 (7P) and A1 (7P without fin) only
Example :
| CPDP | 53 | 05 | A0 | SS | 1 | 01 |
Example for Non Sterile: CPDP5305A0SS101
