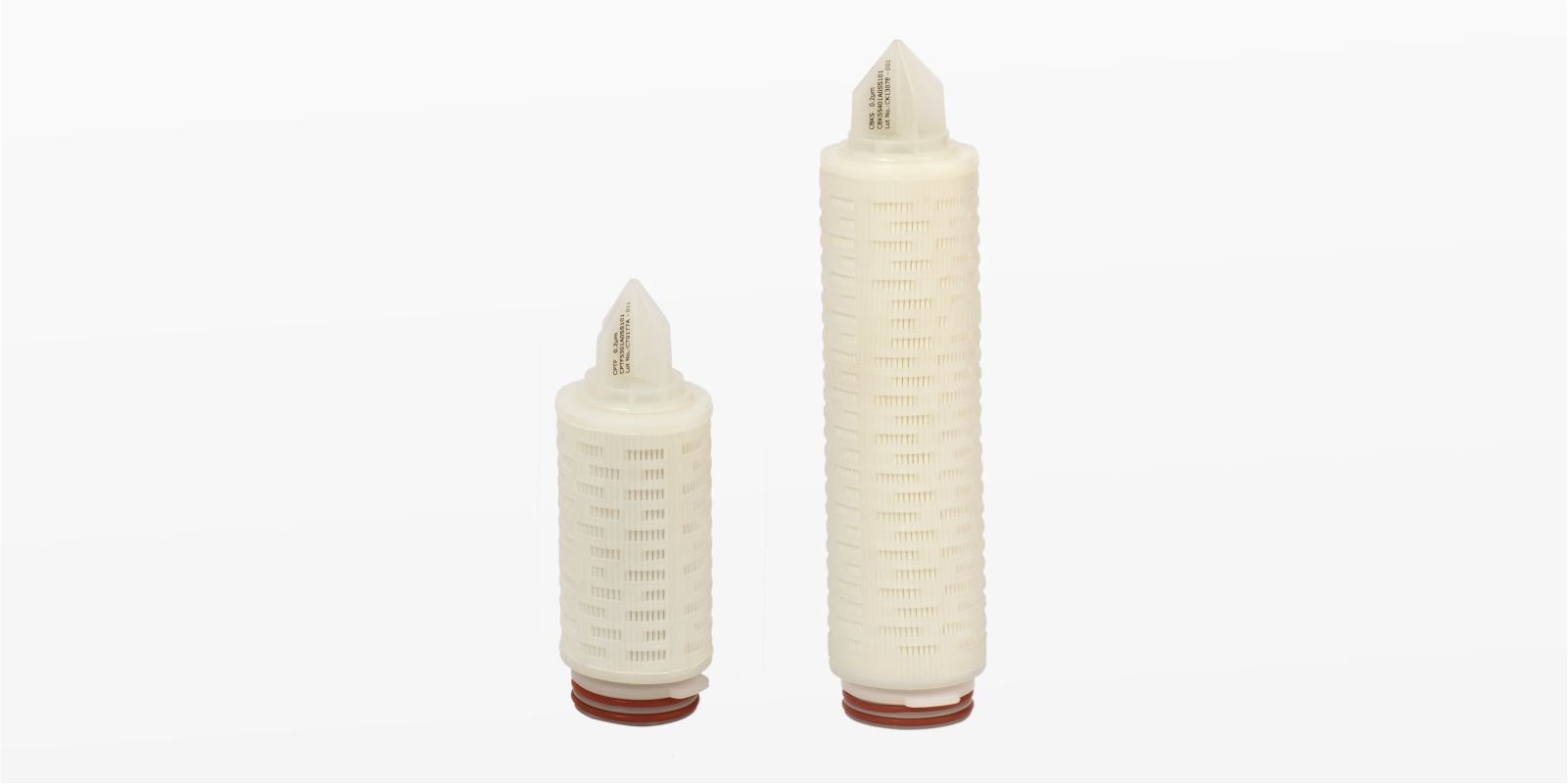

ClariSure PL 5 10 20 30 inch

ClariSure® PL Standard

MDI ClariSure® PL cartridge filters are very high flow rate, high retention efficiency, large area filtration devices of 100% polypropylene construction.These filters are ideal for applications requiring filtration of very large volumes of fluid without compromising on the filtrate quality.

  • Very high retention efficiency (99.99%)
  • Heat stable construction
  • No media migrating
  • Wide chemical compatibility
  • Biologically inert
  • High throughputs
  • Long service life
  • Non-toxic material of construction

  • Filtration of organic solvents in non sterile API
  • Bottle washing in oral formulations
  • Clarification of Buffers
  • Process water
  • Dyes and chemicals

Construction
Filter Media Polypropylene
Support Layers Polypropylene
Body and Core Polypropylene
Size
Size
5″ 10″ 20″ 30″
Effective Filtration Area (Nominal)
2500cm² 5000cm² 10000cm² 15000cm²
Operational
Max. Operating Temperature 80 °C @ < 2 Kg/cm² (30 psi)
Max. Differential Pressure 3.5 Kg/cm² (50 psi ) @ 25 °C
Assurance
Toxicity Passes Bioreactivity test, In Vivo, as per USP <88> for Class VI plastics
Non Fiber Releasing Passes test as per USP and comply with USFDA 21 CFR Part 211.72 for fiber release
Indirect Food Additive All Polypropylene components meet the FDA Indirect Food Additive requirements cited in 21 CFR 177.1520
Extractables with WFI Passes test as per USP
Oxidizable Substances Within limits as specified in USP
Particle Shedding Passes USP test for particulates in injectables
Quality Management System ISO-9001 Certified
USFDA DMF No. 015554

Type
ClariSure® PL CPPL
Size
Size Code
5″** 53
10″ 54
20″ 55
30″ 56
Pore Size
Pore Size Code
1µm 05
2.5µm 06
5µm 07
10µm 08
Adapter
Code
7P A0
‘O’ D0
7P without fin A1
Elastomer
Code
Silicone SS
Viton SV
EPDM SE
FEP Encapsulated Viton FV*
Sterility
Code
Non Sterile 1
Pack Size
Pack Size Code
1 01

*FV is available in Adapter Code A0 (7P) and A1 (7P without fin) only

**Size 5″ is available in Adapter Code A0 (7P) and A1 (7P without fin) only

Example :

CPPL 54 07 A0 SV 1 01

Example for Non Sterile: CPPL5407A0SV101
