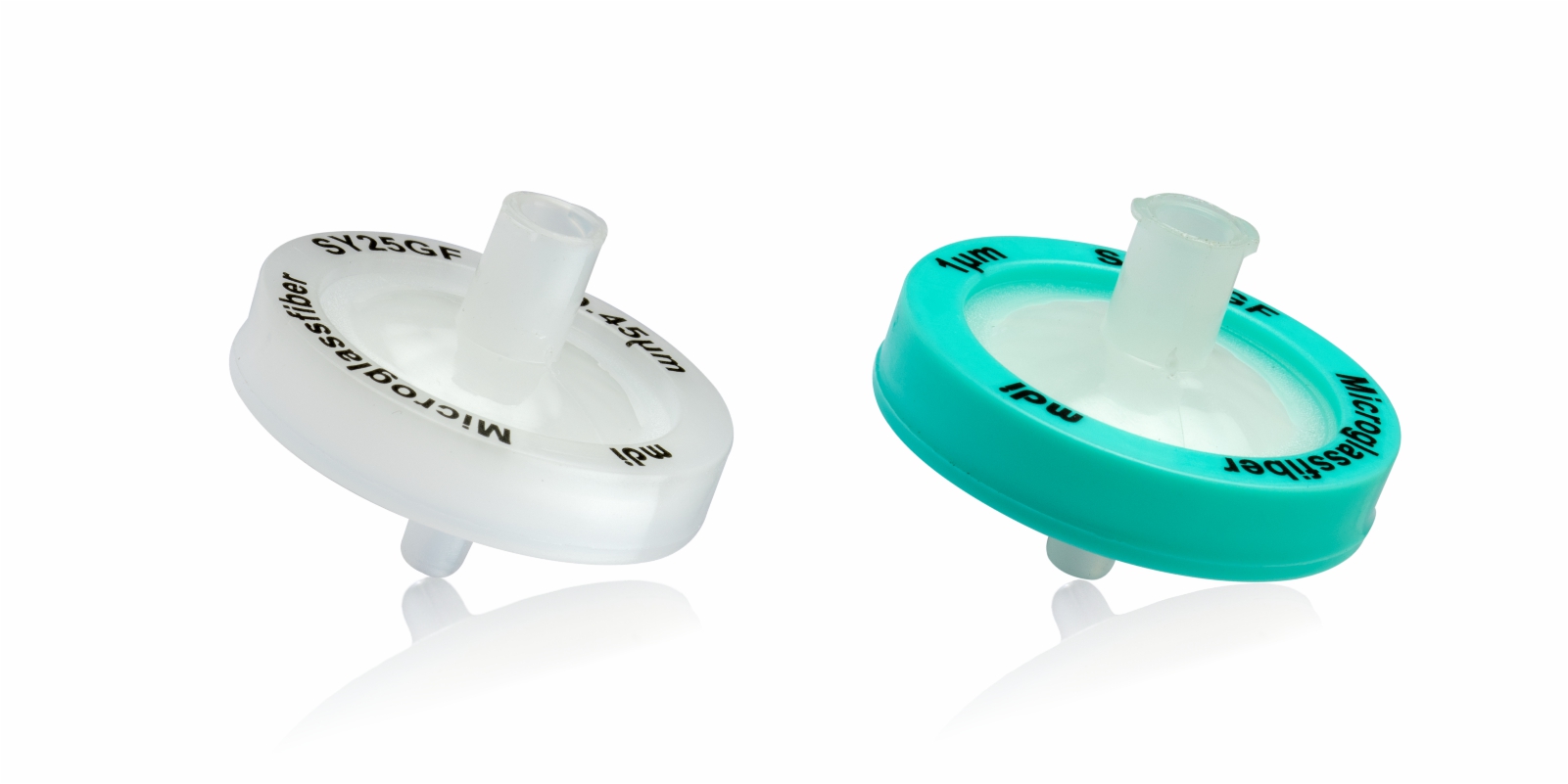

Microglassfiber Syringe Filters Type- SYGF
MDI Microglassfiber syringe filter are specially designed for clarification of extremely viscous samples that may clog a membrane filter.
These syringe filters have micro-glassfiber filter encased in natural polypropylene housing with standard inlet (female luer lock) and outlet (male luer slip) connections. These are designed to offer high throughput of viscous or particulate-laden samples.
These syringe filters are produced with validated processes and QA/QC systems to ensure inter-lot as well as intra-lot consistency.
- Wide chemical compatibility
- Low hold up volume for maximum sample recovery
- High throughput for viscous samples
- Sample preparation for HPLC
- Clarification of laboratory samples
| Construction | |||
| Membrane | Microglassfiber | ||
| Pore size | 0.45µm, 1µm, 3µm | ||
| Diameter |
|
||
| Inlet | Female luer-lock | ||
| Outlet | Male luer slip | ||
| Housing | Polypropylene | ||
| Operational | |||
| Max. Operating Temperature | 55 °C | ||
| Max. Differential Pressure | 75 psi @ 25° C | ||
| Burst Pressure | >12kg/cm² | ||
| Hold-up Volume(with air purge) |
|
||
| Effective Filtration Area |
|
||
| Sample Volume |
|
||
| Clean Water Flow Rate @ 20 psi (1.0 µm) |
|
||
| Assurance | |||
| Fiber Release | Complies with USFDA CFR Title 21, Part 210.3(b)(6) and do not requires any initial Flushing | ||
| Particle Release | The filtrate Complies with USP <788> test for particulate matter in injectables | ||
| Indirect Food Additive | The plastic housing material complies with the requirements of USFDA CFR Title 21 Part 177.1520 | ||
| Oxidizable Substances | Within limits as specified in USP | ||
| Quality Management System | ISO-9001 Certified | ||
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||
*SZGF and STGF are available only in 25mm
Example :
| SYGF | 06 | 01 | MN | XX | 1 | 04 |
