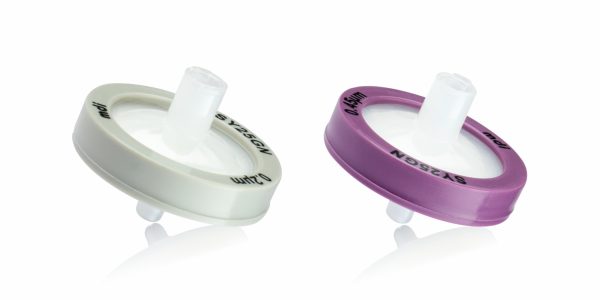

Nylon-66 Membrane Syringe Filters with pre-filter Type- SYGN
MDI SYGN syringe filters incorporate Nylon-66 membrane disc filter with pre-filter in a polypropylene housing to facilitate easy filtration of difficult to filter samples with high particulate contamination.
- High retention efficiency
- 16 Channels for minimum back pressure
- Hydrophilic, having wide chemical compatibility
- HPLC certified for low levels of UV absorbing extractables
- Heat sealed to ensure ‘no leaching’
- No initial flushing required
- Filtration of organic solvents and chemicals
| Construction | |||
| Membrane | Nylon-66 Membrane | ||
| Pore size | 0.2µm, 0.45µm, 5µm | ||
| Prefilter Membrane | Borosilicate Microglassfiber | ||
| Diameter |
|
||
| Inlet | Female luer-lock | ||
| Outlet | Male luer slip | ||
| Housing | Polypropylene | ||
| Operational | |||
| Max. Operating Temperature | 55 °C | ||
| Max. Differential Pressure | 75 psi @ 25° C | ||
| Burst Pressure | >12kg/cm² | ||
| Hold-up Volume(with air purge) |
|
||
| Effective Filtration Area |
|
||
| Clean Water Flow Rate @ 20 psi (0.2µm) |
|
||
| Clean Water Flow Rate @ 20 psi (0.45µm) |
|
||
| Sample Volume |
|
||
| Assurance | |||
| Fiber Release | Complies with USFDA CFR Title 21, Part 210.3(b)(6) and do not requires any initial Flushing | ||
| Particle Release | The filtrate Complies with USP <788> test for particulate matter in injectables | ||
| Indirect Food Additive | The plastic housing material complies with the requirements of USFDA CFR Title 21 Part 177.1520 | ||
| Quality Management System | ISO-9001 Certified | ||
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||
Example :
| SYGN | 03 | 01 | MN | XX | 1 | 04 |
