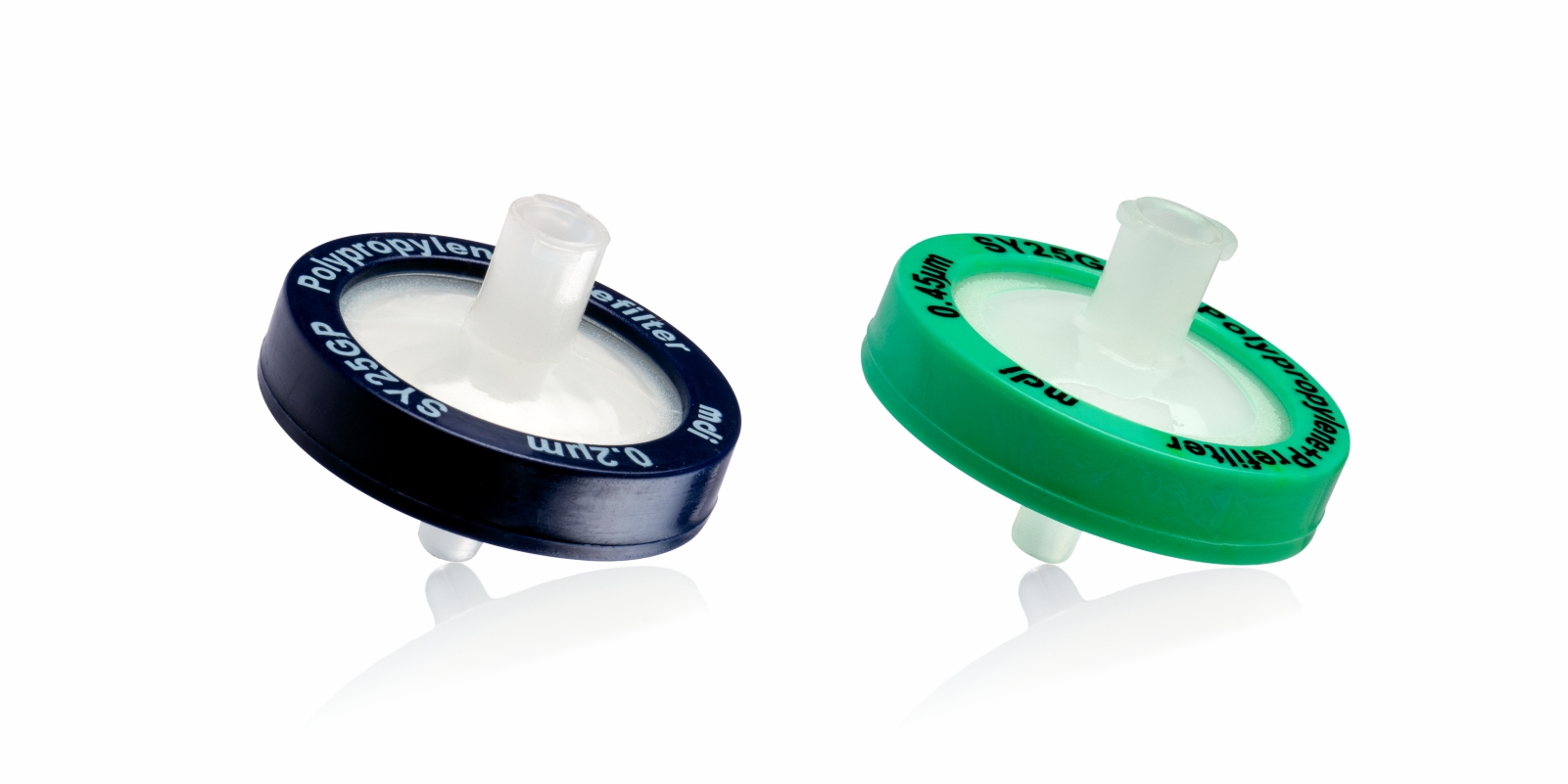

Polypropylene Syringe Filters with pre-filter Type- SYGP
MDI Polypropylene Syringe Filters with pre-filter type SYGP are specially designed for filtration of samples with higher particulate contamination, and difficult to filter liquids.
The polypropylene and binder-free microglassfiber construction gives very high chemical compatibility, and it can be used with acids as well as alkalis.
These syringe filters are produced with validated processes and QA/QC systems to ensure inter-lot as well as intra-lot consistency.
- Resistant to acids and alkalis Low hold up volume for maximum sample recovery
- Extremely low extractables
- Superior HPLC column protection
- Withstand high operating pressure
- Sample preparation for HPLC
- Easy filtration of particulate laden difficult to filter samples
- Filtration of aqueous as well as organic solvents/solutions
| Construction | |||
| Membrane | Hydrophilic Polypropylene | ||
| Pore size | 0.2µm, 0.45µm | ||
| Prefilter Membrane | Borosilicate Microglassfiber | ||
| Diameter |
|
||
| Inlet | Female luer-lock | ||
| Outlet | Male luer slip | ||
| Housing | Polypropylene | ||
| Operational | |||
| Max. Operating Temperature | 55 °C | ||
| Max. Differential Pressure | 75 psi @ 25° C | ||
| Burst Pressure | >12kg/cm² | ||
| Hold-up Volume(with air purge) |
|
||
| Effective Filtration Area |
|
||
| Sample Volume |
|
||
| Assurance | |||
| Fiber Release | Complies with USFDA CFR Title 21, Part 210.3(b)(6) and do not requires any initial Flushing | ||
| Particle Release | The filtrate Complies with USP <788> test for particulate matter in injectables | ||
| Indirect Food Additive | The plastic housing material complies with the requirements of USFDA CFR Title 21 Part 177.1520 | ||
| Oxidizable Substances | Within limits as specified in USP | ||
| Quality Management System | ISO-9001 Certified | ||
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||
Example :
| SYGP | 06 | 01 | MN | XX | 1 | 04 |
