SYVG

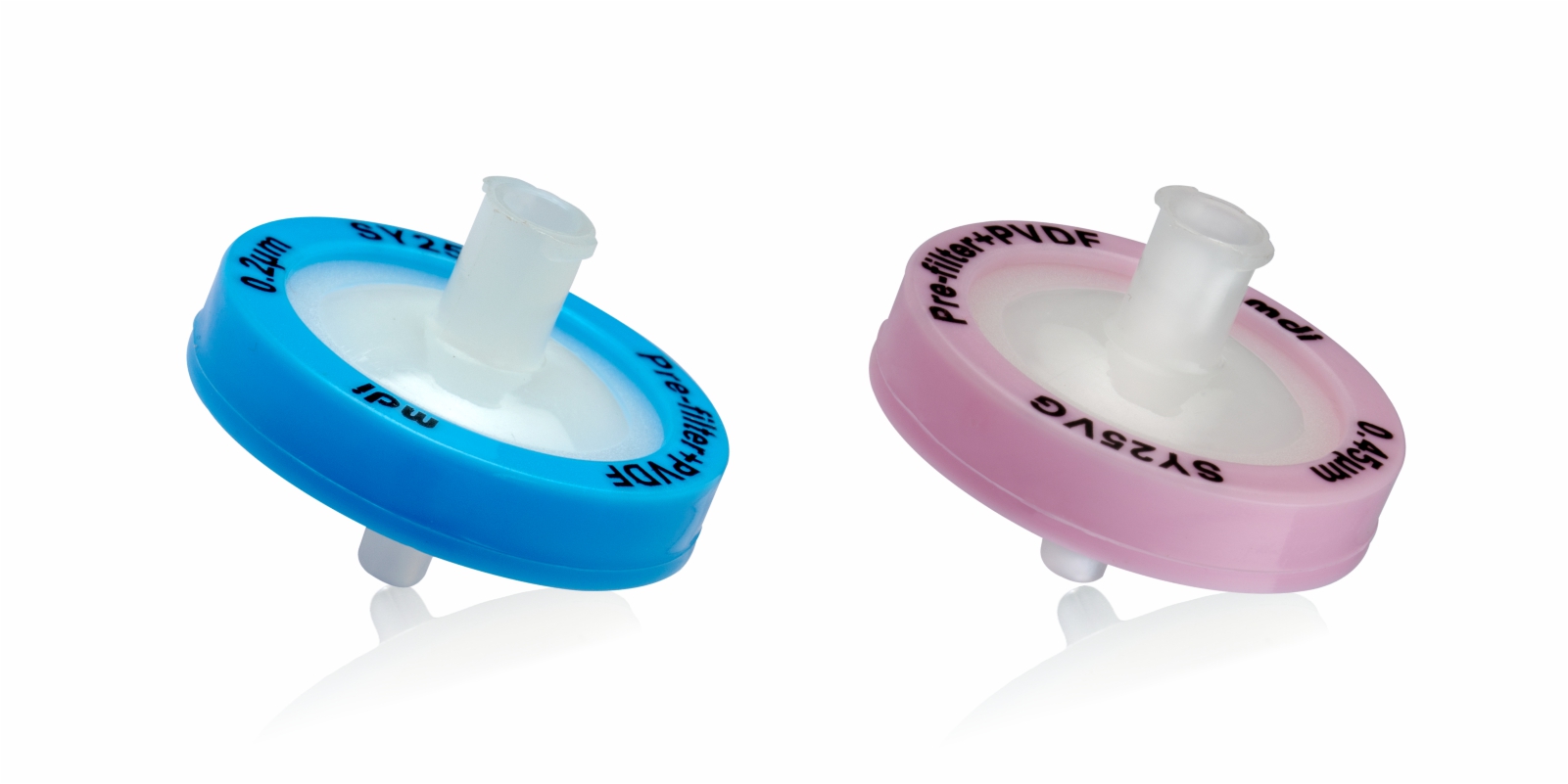

PVDF Membrane Syringe Filters with pre-filter Type- SYVG

MDI PVDF membrane syringe filters type SYVG are specially designed for sample preparation. A unique 16-channel design along with binder-free Microglassfiber prefilter ensures maximum flow rates and throughputs.

SYVG syringe filters are HPLC certified and validated for retention efficiency, extractables, fitment and burst pressure.

These syringe filters are produced with validated processes and QA/QC systems to ensure inter-lot as well as intra-lot consistency.

  • High retention efficiency
  • Wide chemical compatibility
  • Low hold up volume for maximum sample recovery
  • HPLC certified for very low levels of UV absorbing extractables
  • Superior HPLC column protection
  • Withstand high operating pressure

  • Sample preparation for HPLC
  • Easy filtration of particulate laden hazy samples

Construction
Pore size 0.2µm, 0.45µm
Prefilter Membrane Borosilicate Microglassfiber
Media Hydrophilic PVDF Membrane
Diameter
13mm 25mm
Inlet Female luer-lock
Outlet Male luer slip
Housing Polypropylene
Operational
Max. Operating Temperature 55 °C
Max. Differential Pressure 75 psi @ 25° C
Hold-up Volume(with air purge)
< 20 µL < 50 µL
Effective Filtration Area
0.8 cm² 4.15 cm²
Clean Water Flow Rate @ 20 psi (0.2µm)
> 10 ml/min > 50 ml/min
Clean Water Flow Rate @ 20 psi (0.45µm)
50 ml/min > 70 ml/min
Sample Volume
< 10 ml < 100 ml
Assurance
Fiber Release Complies with USFDA CFR Title 21, Part 210.3(b)(6) and do not requires any initial Flushing
Particle Release The filtrate Complies with USP <788> test for particulate matter in injectables
Indirect Food Additive The plastic housing material complies with the requirements of USFDA CFR Title 21 Part 177.1520
Oxidizable Substances Within limits as specified in USP
Quality Management System ISO-9001 Certified

Type
Type Code
PVDF Membrane Syringe Filters with Microgassfiber Prefilter SYVG
Size
Diameter Code
13mm 03
25mm 06
Pore Size
Pore Size Code
0.2µm 01
0.45µm 02
Inlet/Outlet
Code
Female luer-lock M
Male luer slip N
XX
Sterile/ Non Sterile
Code
Non Sterile 1
Pack Size
Pack Size Code
100 04
1000 06

Example :

SYVG 06 01 MN XX 1 04
