SYVF

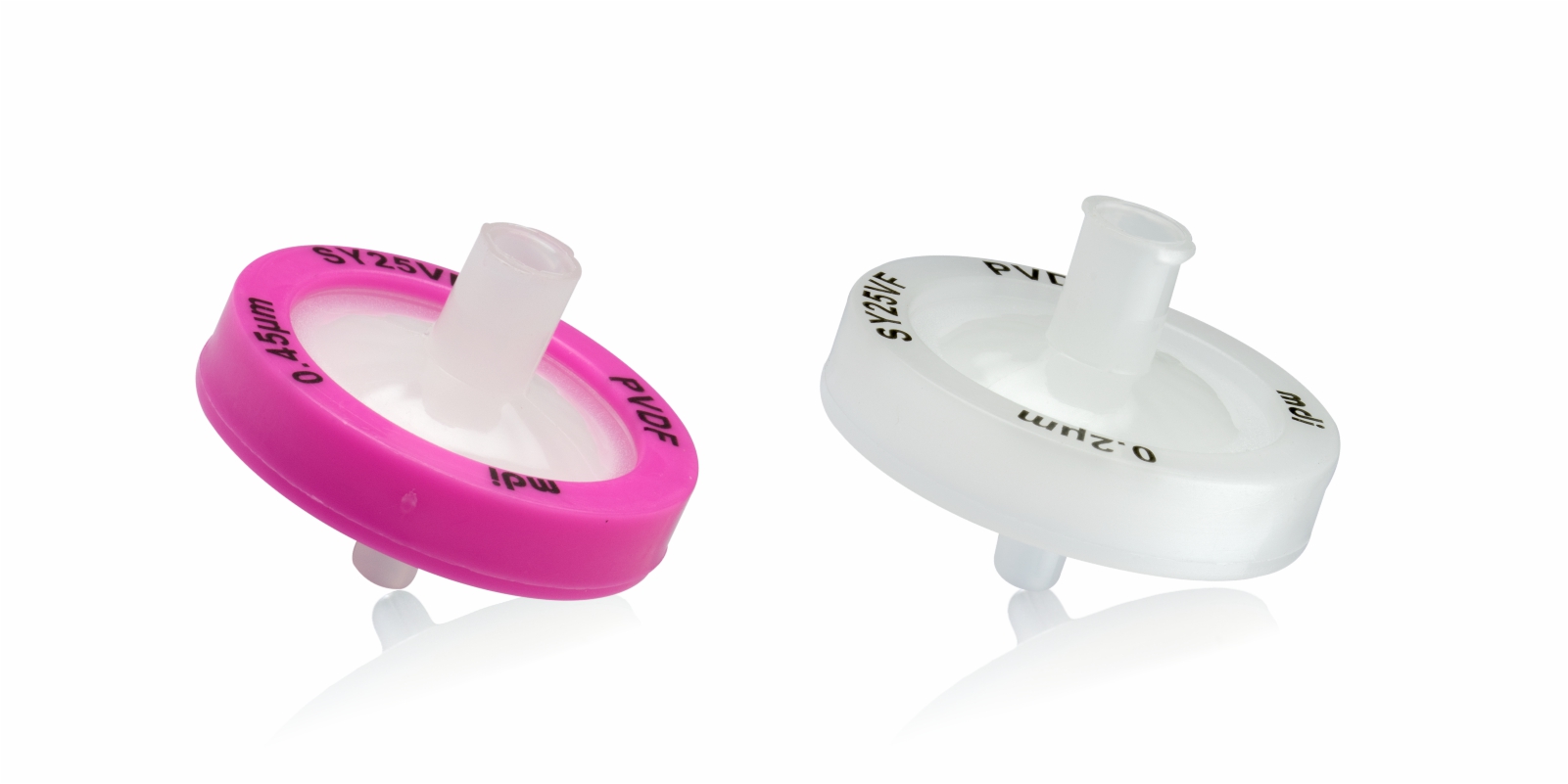

PVDF Membrane Syringe Filters- SYVF

MDI PVDF membrane syringe filters type SYVF are specially designed for small volume filtration and sample preparation.
PVDF syringe filters are HPLC certified and validated for retention efficiency, extractables, fitment and burst pressure.
A unique 16-channel design ensures maximum flow rates and throughputs.
These syringe filters are produced with validated processes and QA/QC systems to ensure inter-lot as well as intra-lot consistency.

  • High retention efficiency
  • Wide chemical compatibility
  • Low hold up volume for maximum sample recovery
  • HPLC certified for very low levels of UV absorbing extractables
  • Superior HPLC column protection
  • Withstand high operating pressure

  • HPLC samples preparation
  • Prefiltration and clarification of laboratory samples

Construction
Membrane Hydrophilic PVDF Membrane
Pore size 0.1µm, 0.2µm, 0.45µm, 1µm, 1.2µm
Diameter
4mm 13mm 25mm
Inlet Female luer-lock
Outlet Male luer slip
Housing Polypropylene
Operational
Max. Operating Temperature 55 °C
Max. Differential Pressure 75 psi @ 25° C
Burst Pressure >12kg/cm²
Hold-up Volume(with air purge)
< 5µl < 20µl < 50µL
Effective Filtration Area
0.07 cm² 0.8 cm² 4.15 cm²
Clean Water Flow Rate @ 20 psi (0.2µm)
> 0.3 ml/min > 8 ml/min > 40 ml/min
Clean Water Flow Rate @ 20 psi (0.45µm)
> 1.2 ml/min > 30 ml/min > 120 ml/min
Sample Volume
< 1 ml < 10 ml < 100 ml
Assurance
Fiber Release Complies with USFDA CFR Title 21, Part 210.3(b)(6) and do not requires any initial Flushing.
Particle Release The filtrate Complies with USP <788> test for particulate matter in injectables.
Indirect Food Additive The plastic housing material complies with the requirements of USFDA CFR Title 21 Part 177.1520 .
Oxidizable Substances Within limits as specified in USP
Quality Management System ISO-9001 Certified

Type
Type Code
PVDF Membrane Syringe Filter SYVF
Size
Diameter Code
4mm 01
13mm 03
25mm 06
Pore Size
Pore Size Code
0.1µm 36
0.2µm 01
0.45µm 02
1µm 05
1.2µm 10
Inlet/Outlet
Code
Female luer-lock M
Male luer slip N
XX
Sterility
Code
Non Sterile 1
Pack Size
Pack Size Code
100 04
1000 06

* SZVF and STVF are available only in 25mm

 Example :

SYVF 06 01 MN XX 1 04
