  • Harvester Funnel

Harvester Funnel

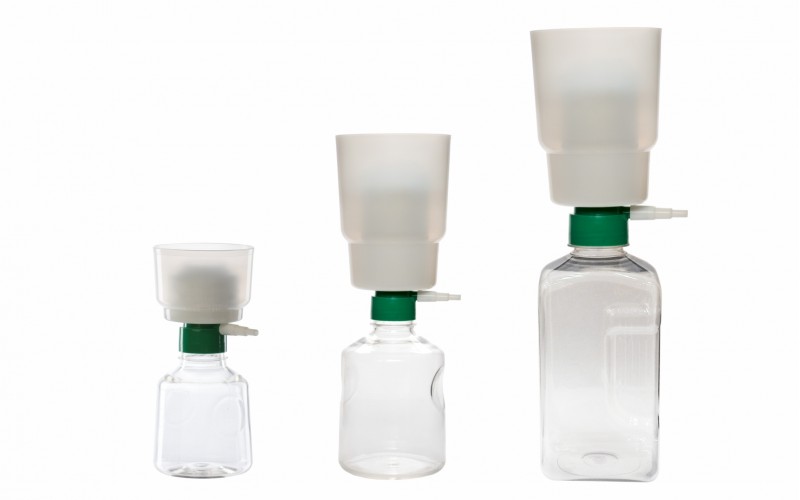

mdi single use Harvester Funnels do away with the necessity of centrifugation for cell harvests in the lab. These are designed to clarify up to 1 litre of mammalian cell culture harvests within few minutes as compared to hours by centrifugation.

Construction

mdi Harvester Funnels are easy to use vacuum filtration devices which house a large area pleated filter. The filter is made of multilayered progressively finer depth filter media. The special design provides high loading capacity for whole cells and high retention efficiencies for cell fragments, organelles, colloids and lipids to give effective protection to downstream 0.2μm sterilizing filters.

Important: To minimize frothing, please use the Harvester Funnel initially at a low vacuum of <50 mmHg, and increase gradually as required.

Patent Pending

  • Clarification of mammalian cell culture harvests within few minutes.
Construction
Funnel Adaptor 45 mm neck
Filter Media Multilayered Microglassfiber
Funnel Polypropylene
Size
Effective Filtration Area
400 cm² for 500 mL Harvester funnel
1200 cm² for 1 Liter Harvester funnel

Non Sterile Harvester Funnels

  • with 500 ml receiver bottle : FHXG5238X05X108
  • with 1 liter receiver bottle : FHXG5338X10X108

Gamma Sterile Harvester Funnels

  • with 500 ml receiver bottle : FHXG5238X05X308
  • with 1 liter receiver bottle: FHXG5338X10X308
Datasheet Download

Write a review

Note: HTML is not translated!
    Bad           Good
  • Cell harvest clarification of upto 1 litre within a few minutes
  • Low hold-up volume
