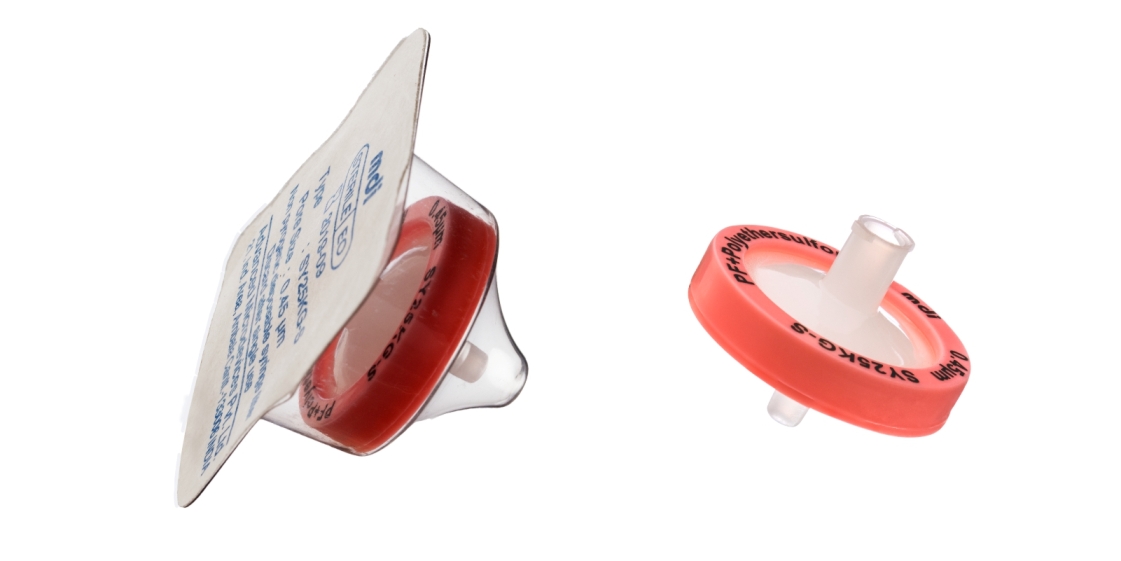

Pre-sterilized PES Membrane Syringe Filters with pre-filter
MDI Syringe filter type SYKG-S have Polyethersulfone (PES) membrane filter and a binder free Borosilicate microglassfiber prefilter in polypropylene housing.
These syringe filters are used for filtration and sterilization of difficult to filter biological fluids such as , culture media, serum and pure sera as well.
- Absolute Retention
- Low Protein Binding
- High retention efficiency
- High throughput
- 16 Channels for minimum back pressure
- Low extractable
- Hydrophilic
- Sterile Filtration of serum solution
- Sterile Filtration of pure sera such as Foetal Calf Serum and Foetal Bovine Serum
- Sterile Filtration of culture media
| Construction | |||
| Pore size | 0.2µm, 0.45µm | ||
| Prefilter Membrane | Borosilicate Microglassfiber | ||
| Media | Polyethersulfone (PES) Membrane | ||
| Diameter |
|
||
| Inlet | Female luer-lock | ||
| Outlet | Male luer slip | ||
| Housing | Polypropylene | ||
| Operational | |||
| Max. Operating Temperature | 55 °C | ||
| Max. Differential Pressure | 75 psi @ 25° C | ||
| Burst Pressure | >12kg/cm2 | ||
| Hold-up Volume(with air purge) |
|
||
| Sterilization By Irradiation | Gamma Irradiatiable up to 50 kGy. These filters should not be autoclaved or in-line steam sterilized. | ||
| Sterilization By Irradiation | Gamma | ||
| Effective Filtration Area |
|
||
| Bubble Point (0.2 µm) | > 50 psi (> 3.52 Kg/cm2) | ||
| Bubble Point (0.45 µm) | > 32 psi (> 2.25 Kg/cm2) | ||
| Sample Volume |
|
||
| Retention Efficiency (0.45µm) | LRV >7 for S. marcescens (ATCC 14756) per cm² of filter area | ||
| Retention Efficiency (0.2µm) | LRV >7 for Br. diminuta (ATCC 19146) per cm² of filter area | ||
| Assurance | |||
| Fiber Release | Complies with USFDA CFR Title 21, Part 210.3(b)(6) and do not requires any initial Flushing | ||
| Particle Release | The filtrate Complies with USP <788> test for particulate matter in injectables | ||
| Indirect Food Additive | The plastic housing material complies with the requirements of USFDA CFR Title 21 Part 177.1520 | ||
| Oxidizable Substances | Within limits as specified in USP | ||
| Quality Management System | ISO-9001 Certified | ||
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||
Example :
| SYKG | 06 | 01 | MN | XX | 3 | 04 |
