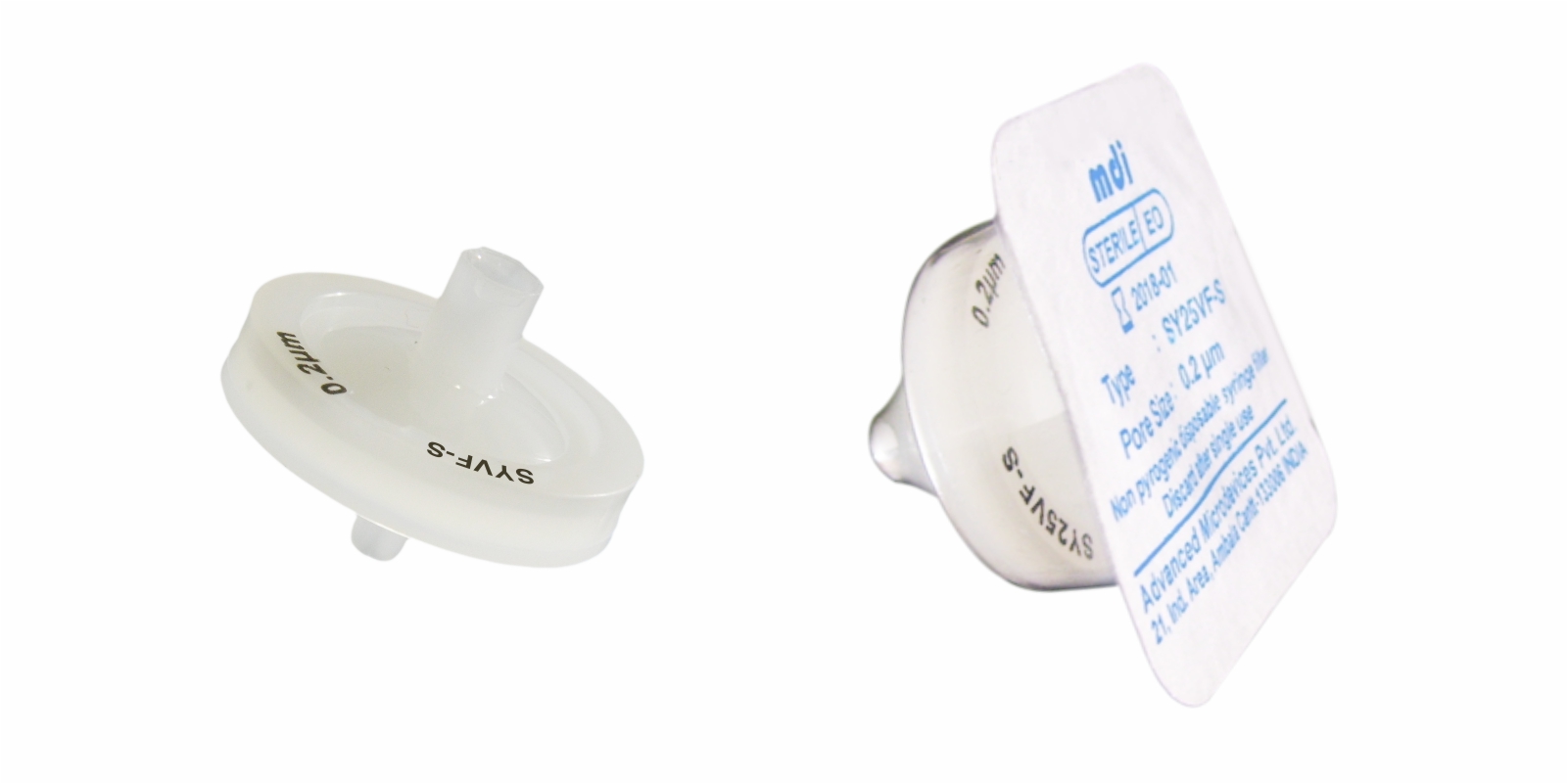

PVDF Membrane Syringe Filter Type- SYVF S

Pre-sterilized Polyvinylidene Fluoride (PVDF) Membrane Syringe Filters

PVDF membrane syringe filters SYVF-S have Polyvinylidene Fluoride filter in a poly-propylene housing. These syringe filters are used for filtration and sterilization of protein solutions, culture media and serum.

  • Absolute Retention
  • Low protein binding
  • 16 Channels for minimum back pressure
  • High throughputs

  • Sterilization of high value additives such as hormones, vitamins and antibiotics.
  • Sterilization of protein solutions, culture media and buffers

Construction
Membrane Hydrophilic PVDF Membrane
Pore size 0.2µm, 0.45µm
Diameter
4mm 13mm 25mm
Inlet Female luer-lock
Outlet Male luer slip
Housing Polypropylene
Operational
Max. Operating Temperature 55 °C
Max. Differential Pressure 75 psi @ 25° C
Burst Pressure >12kg/cm²
Hold-up Volume(with air purge)
<5 µl <20 µl <50 µl
Sterilization By Gas Sterilizable by Ethylene Oxide
Sterilization By Irradiation Gamma
Effective Filtration Area
0.07 cm² 0.8 cm² 4.15 cm²
Clean Water Flow Rate @ 20 psi (0.2µm)
>0.3 ml/min >8 ml/min >40 ml/min
Clean Water Flow Rate @ 20 psi (0.45µm)
>1.2 ml/min >30 ml/min >120 ml/min
Sample Volume
< 1 ml < 10 ml < 100 ml
Retention Efficiency (0.45µm) LRV >7 for Sr. marcescens (ATCC 14756) per cm2
Retention Efficiency (0.2µm) LRV >7 for Br. diminuta (ATCC 19146) per cm2
Assurance
Fiber Release Complies with USFDA CFR Title 21, Part 210.3(b)(6) and do not requires any initial Flushing.
Particle Release The filtrate Complies with USP <788> test for particulate matter in injectables
Indirect Food Additive The plastic housing material complies with the requirements of USFDA CFR Title 21 Part 177.1520
Oxidizable Substances Within limits as specified in USP
Quality Management System Within limits as specified in USP

Type
Type Code
Pre-sterilized Polyvinylidene Fluoride (PVDF) Membrane Syringe Filters
 SYVF
Size
Diameter Code
4mm 01
13mm 03
25mm 06
Pore Size
Pore Size Code
0.2µm 01
0.45µm 02
Inlet/Outlet
Code
Female luer-lock M
Male luer slip N
XX
Sterility
Code
EO Sterile 2
Gamma Sterile 3
Pack Size
Pack Size Code
100 04
SYVF 06 01 MN XX 2 04
