AseptiVac® Mini

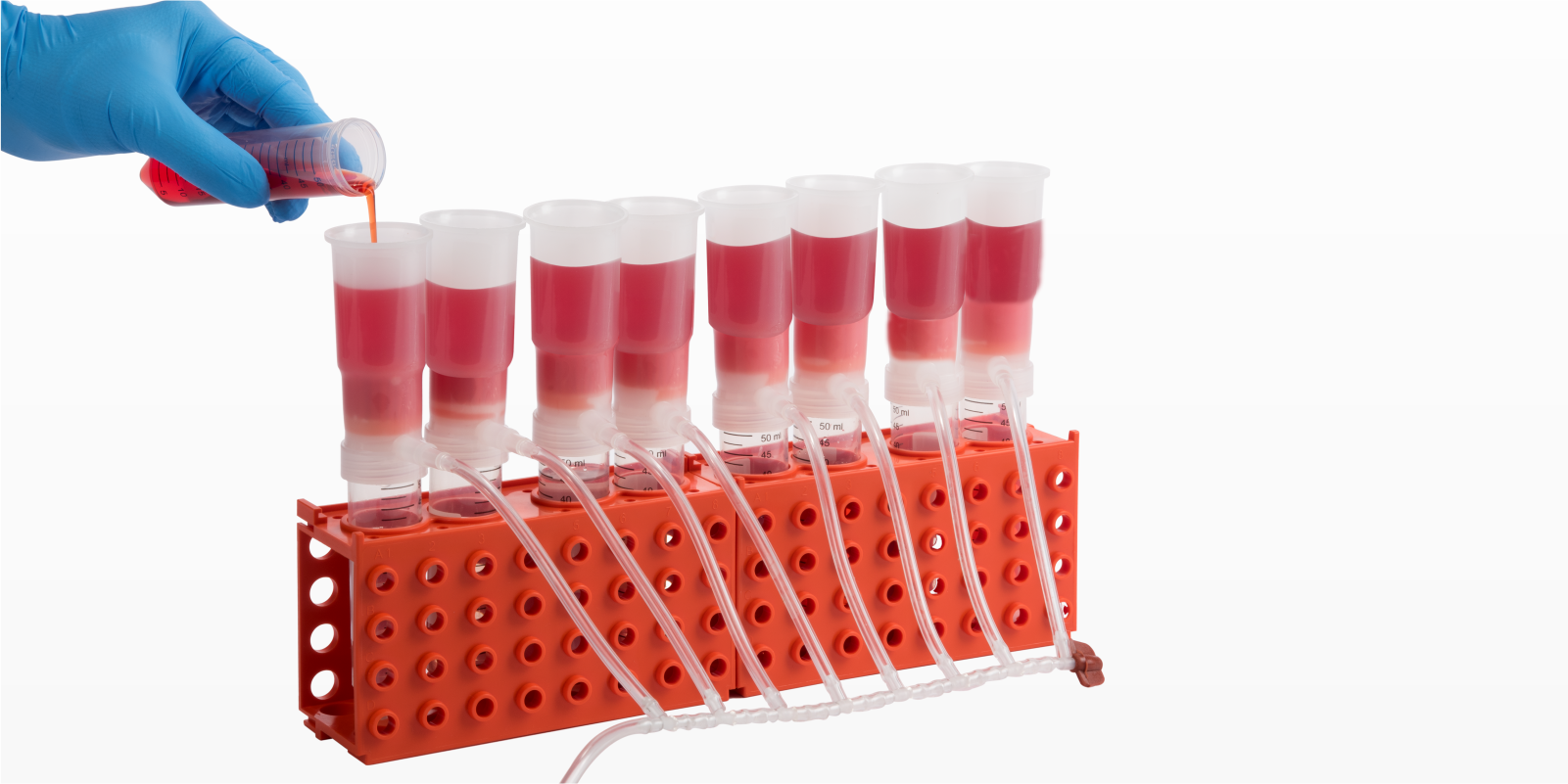

MDI AseptiVac® Mini are gamma sterile, ready to use disposable vacuum filtration devices with a unique pleated cartridge filter built into the funnel tube which fits on to the neck of the receiver tube.

The large area serial filter device with high flow, low protein binding polyethersulfone membrane, allows high speed filtration and enhanced throughput with even difficult to filter solutions in biopharmaceuticals and life science research labs.

Fast and easy vacuum filtration of up to 50 mL of difficult to filter samples with unique built in pleated PES cartridge filter

AseptiVac® Mini vacuum filters find applications in cell expression labs in biopharmaceutical R&D for sterile filtration of up to 50 mL

  • Cell harvest supernatant
  • Serum Solutions
  • Pure Sera

Materials of Construction
Filter Membrane Polyethersulfone
Filter Housing Polypropylene
Funnel Polystyrene
Bottle Polystyrene
Technical Specifications
Pore Size 0.1μm, 0.2μm and 0.45μm
Filtration Area 100 cm²
Funnel Capacity 50 mL
Hold up Volume < 5 ml
Available Receiver Bottle Capacity 500 ml, 1000 ml
Operating Conditions
Maximum Operating Temperature 45°C
Operational
Water Flow Rate 400 ml/min @ 250 mmHg
Assurance
100% Integrity Tested Each and every AseptiVac filter device is tested for integrity with a non destructive filter integrity test which is correlated with actual microbial retention
Bacterial Endotoxin Aqueous extracts exhibit < 0.25 EU/ml
Microbial Retention
0.1μm: LRV >7 for Acholeplasma laidlawii 0.2μm: LRV >7 for of Brevundimonas diminuta
Extractables AseptiVac vacuum filters exhibit very low extractables
Traceability Each lot is accompanied with a certificate of quality and the unique lot number ensures complete traceability.
Biosafety
  • Passes Bioreactivity test, In-vivo, as per USP <88> for Class VI plastics
  • Passes Biological Reactivity Tests, In Vitro, as per USP <87> for Cytotoxicity

Type
Code
AseptiVac® KS Mini AKX7
EFA
Code
100 cm² 31
Pore Size
Code
0.1µm 36
0.2µm 01
X
Receiver Bottle Size
Code
50 mL 0C
X
Sterility
Code
Gamma Sterile 3
Pack Size
Code
10 02

Example :

AKX7 31 01 X 0C X 3 02

File Type Download
Datasheet Download
