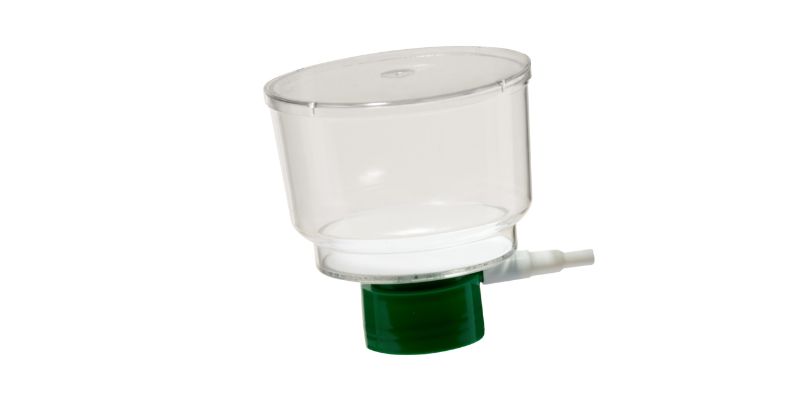

Vacufil® : Bottle Top Vacuum Filter

MDI Pre-Sterilized Vacuum Filtration units with an extra large 75mm diameter, low protein binding Polyethersulfone membrane are the best option for filtration of biologicals like sera and culture media, and other proteinaceous solutions.

Vacufil® filters have a hydrophobic filter in the vacuum arm to prevent the passage of filtrate to the pump. These filters screw perfectly on to vacuum safe bottles with 45mm neck size.

  • Low Protein Binding
  • Extra large filter area
  • High flow rates
  • 100% Integrity tested
  • No elastomers or adhesive used in sealing
  • Non-toxic materials of construction

Construction
Membrane Polyethersulfone
Pore size 0.2μm, 0.45μm
Diameter 75mm
Housing Acrylic
Connection 45mm (Screw cap neck)
Operational
Max. Operating Temperature 45° C
Sterilization Pre-sterilized with EO
Retention Efficiency 0.2μm: LRV>7 for Br. diminuta
Hold-up Volume <3ml
Assurance
Extractables with WFI Passes test as per USP
Oxidizable Substances Within limits as specified in USP
Quality Management System ISO-9001 Certified

Type
Vacufil®: Bottle Top VFPX
Size
Dia Code
75mm 11
Pore Size
Pore Size Code
0.2µm 01
0.45µm 02
XX
XX
Sterility
Code
Gamma Sterile 3
Pack Size
Pack Size Code
12 08
24 12

Example :

VFPX 11 01 XX XX 2 08

File Type Download
Datasheet Download
