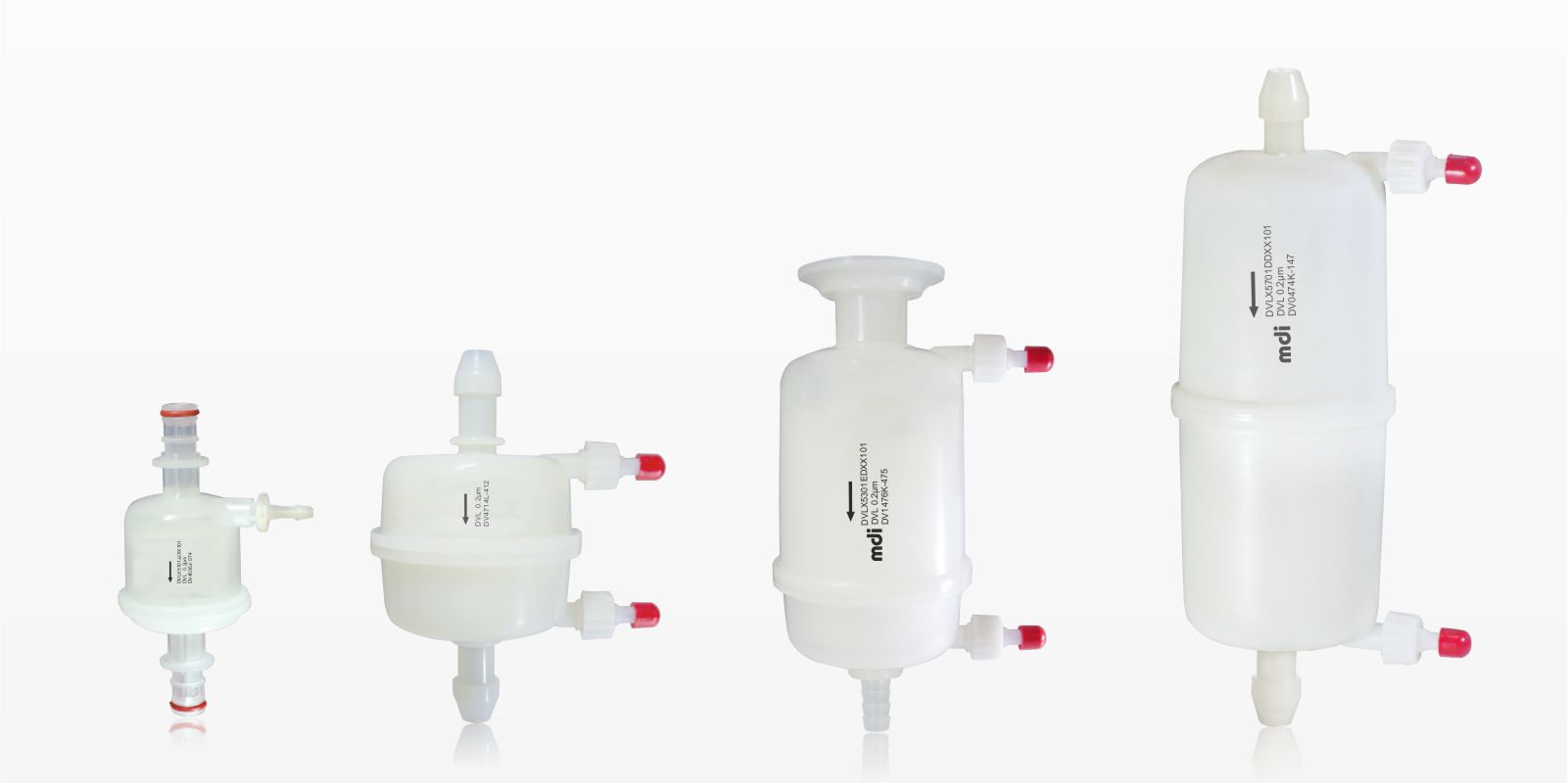

AseptiVent® VF-γ Small
MDI AseptiVent® VF-γ, gamma sterilizable PVDF membrane vent filters are validated for microbial retention with liquid bacterial challenge test as per ASTM F838 to provide a high degree of sterility assurance for critical applications such as small bioreactors, sterile tank venting, bottle venting etc.
Consistent and Reliable Quality: | AseptiVent® capsule filters are produced with ISO 9001 certified quality management systems. |
Regulatory Compliance: | Meet all pharmacopeial and compendia requirements and are registered with USFDA DMF #015554 |
Air Flow Rates: | AseptiVent® is produced using a high hydrophobicity PVDF membrane. This ensures good flow rates even with high moisture content in the inlet air.
AseptiVent® capsule filters are designed to offer high air/gas flow rates at low differential pressures. |
- Sterile air sparging
- Sterile venting
- Fermentor exhaust
Construction | |||||
Membrane | Hydrophobic PVDF | ||||
Pore size | 0.2 µm | ||||
Support Layers | Polyester | ||||
Body and Core | Gamma Stable Polypropylene | ||||
Size | |||||
Size |
|
||||
Effective Filtration Area (Nominal) |
|
||||
Dimension (End to End) – Quick Connector |
|
||||
Dimension (End to End) – ¾” Sanitary Flange Inlet I/O |
|
||||
Dimension (End to End) – 1½” Sanitary Flange I/O |
|
||||
Dimensions (End to End) – ½” Single Step Hose Barb I/O |
|
||||
Dimension (End to End) – ½” Hose Barb I/O |
|
||||
Dimension (End to End) – ¼” SHB |
|
||||
Dimensions (End to End) Inline Capsule Filters – 1½” Sanitary Flange Inlet ½” Single Step Hose Barb Outlet |
|
||||
Operational Radius (with Vent/ Drain) |
|
||||
Vent and Drain | ¼” Hose Barb with Silicone “O” rings for 2″, 5″ and 8″ only | ||||
Integrity Testing / Retention | |||||
Bubble Point | > 18 psi (1.26 Kg/cm²) with 50% IPA/Water | ||||
Microbial Retention | LRV >7 for Brevundimonas diminuta (ATCC 19146) per cm² | ||||
Operational | |||||
Max. Operating Temperature | 80°C @ < 2Kg/cm² (30 psi) | ||||
Max. Differential Pressure | < 4 Kg/cm² (60 psi) @ 30° C | ||||
Sterilization By Irradiation | Gamma Irradiatiable up to 50 kGy. These filters should not be autoclaved or in-line steam sterilized. | ||||
Assurance | |||||
Toxicity | Passes Bioreactivity test, In Vivo, as per USP <88> for Class VI plastics | ||||
Bacterial Endotoxin | AAqueous extracts exhibit < 0.5 EU/ml as established by Limulus Amebocyte Lysate (LAL) Test | ||||
Bioburden | Bioburden level is < 1000 cfu/filter device as per ISO 11737-1 : 2018 | ||||
Non Fiber Releasing | Passes test as per USP and comply with USFDA 21 CFR Part 210.3 (b)(6) for fiber release | ||||
Indirect Food Additive | All Polypropylene components meet the FDA Indirect Food Additive requirements cited in 21 CFR 177.1520 | ||||
Bacterial Retention | LRV >7 for B. diminuta per cm² of filter area as per ASTM F 838 (liquid bacterial Challenge) | ||||
Good Manufacturing Practice | These products are manufactured in a facility which adheres to Good Manufacturing Practices | ||||
Oxidizable Substances | Within limits as specified in USP <1231> | ||||
Particle Shedding | Passes USP test for particulates in injections | ||||
Quality Management System | ISO-9001 Certified | ||||
USFDA | DMF No. 015554 |
|
|
|
|
|
|
|
|
*1” Capsule Filters are not available with ½” Single step Hose Barb, ½” MNPT and 3/8″ Hose Barb
**Male luer slip is available only in 1” capsule filter as outlet
***3/16″ Hose Barb end connection is available in:
- 1″ and 2″ capsule filters as inlet and outlet
- 5″ capsule filters as outlet only
****Gamma sterilized filters cannot be gamma irradiated again
Example :
DVLX | 57 | 01 | EE | R | X | 1 | 01 |
Example for Non Sterile: DVLX5301QQRX101 Example for Gamma Sterile: DVLX5301QQXX301
