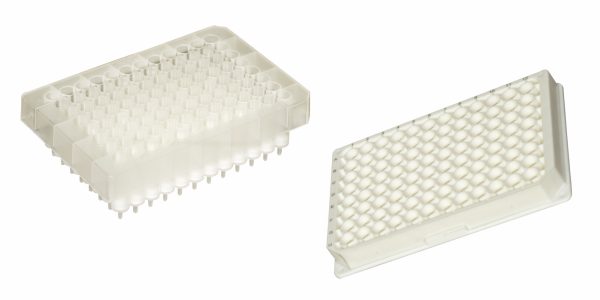

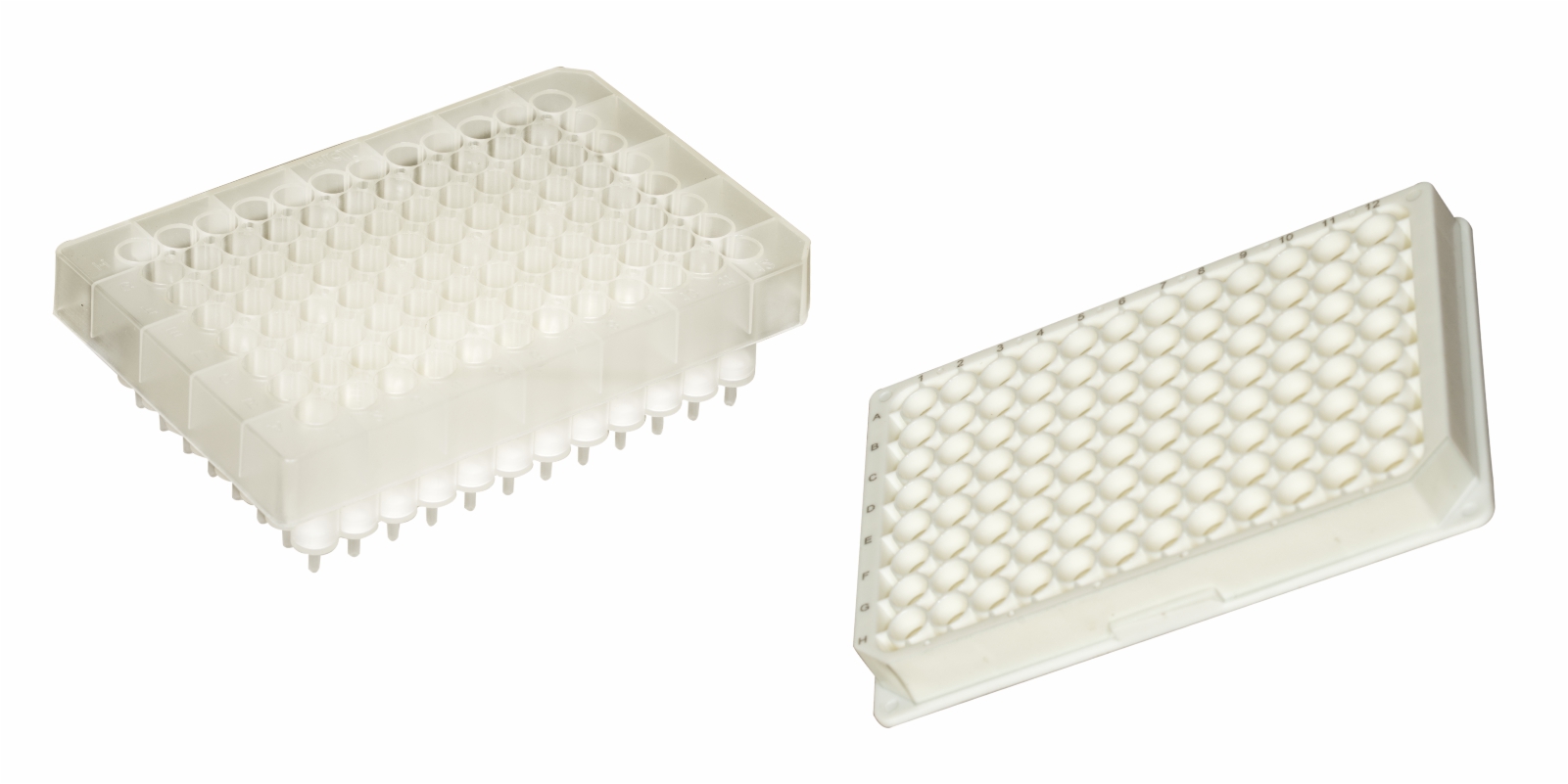

96 Well Filter Plates

MDI 96 Well filter plates are well designed high throughput devices which are useful for a wide variety of applications ranging fromsample preparation, debris removal and filter based assays.

Inert, Polypropylene body, simple and robust design, with each filterwell completely separated from the other ensures that there is nocross contamination.

  • Individual filter elements with zero crosstalk
  • Very low sample hold up
  • Validation for removal of micro organisms from culture

Construction
Types Available
Deep Well Standard
Available Pore Sizes
Hydrophilic PVDF 0.2 μm, 0.45μm
PES 0.2 μm, 0.45μm
Hydrophilic PP 0.45μm
Hydrophobic PTFE 0.2 μm, 0.45μm, 1μm
Glassfiber 1μm
Polyethylene Frit 20μm
Dimensions
Height
3.8 cm (1.5 inch) 1.4 cm (0.6 inch)
Length 12.8 cm (5.0 inch)
Width 8.6 cm (3.4 inch)
Filtration Area 0.25 cm²
Operating Conditions
Recommended Operating Vaccum 25.4 cm Hg(10 inch Hg) or greater
Filtration by Centrifugation 500 – 3,000 x g
Operational
Well Capacity
1.4 ml 350 μl

Type
Code
PP Filter plates FPPX
No. of Wells
Code
96 A
Well Capacity *
Code
350μl 1
1.4 mL 2
Final Filter Pore Size
Code
0.2µm 01
0.45µm 02
1µm 05
20µm 11
Final Filter
Code
PVDF W
PES K
Hydrophilic PP P
Hydrophobic PTFE T
Glassfiber G
Polyethylene Frit F
Pre-filter Pore Size
Code
0.2µm 01
0.45µm 02
1µm 05
20µm 11
None XX
Pre-filter
Code
PVDF W
PES K
Hydrophilic PP P
Hydrophobic PTFE T
Glassfiber G
Polyethylene Frit F
None X
Sterility
Code
Non Sterile 1
EO Sterile 2
Pack Size
Code
10 02
50 03
*Polyethylene frit will have a well capacity of

– 300 µL in standard filter plate

– 1.3 mL in deep well filter plate

Example:

FPPX A 1 01 W 02 W 1 02
