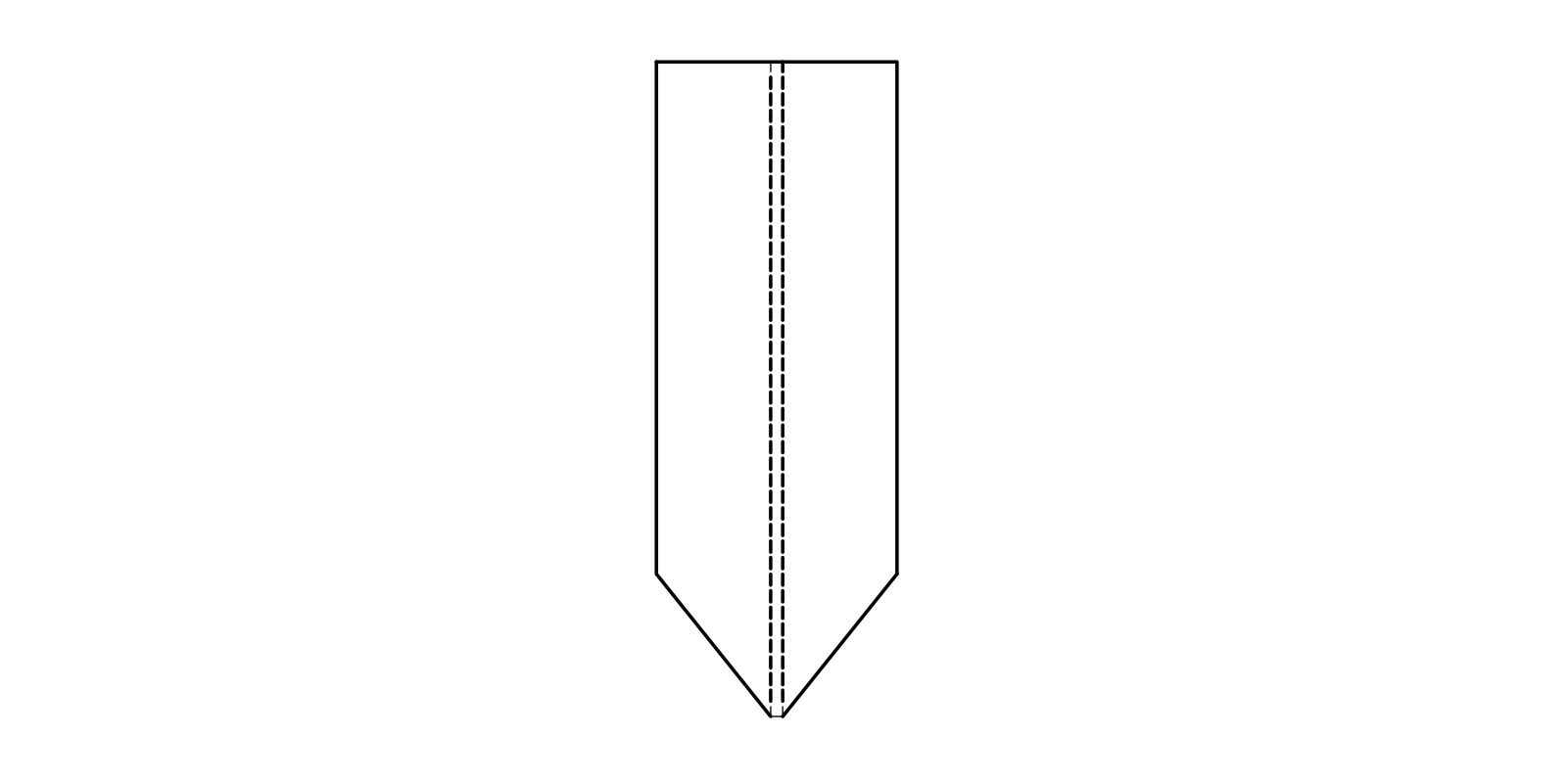

AseptiLiner 3D

MDI AseptiLiner 3D liners are specially designed for biopharmaceutical processes involving storage and transfer of process intermediates such as post centrifuge slurries and pellets. The easy to seal design using wire ties ensures leak proof storage and transfer.

  • Preparation of media and buffers before filtration
  • Pooling process intermediate solutions
  • Waste collection from downstream purification processes

Construction
Materials of Construction $('textarea[name="product_attribute[1][product_attribute_description][1][text]"]').attr('title', 'Double Click for HTML').on('dblclick', function(){ htmlProductAttribute($(this)); });$('textarea[name="product_attribute[2][product_attribute_description][1][text]"]').attr('title', 'Double Click for HTML').on('dblclick', function(){ htmlProductAttribute($(this)); });$('textarea[name="product_attribute[3][product_attribute_description][1][text]"]').attr('title', 'Double Click for HTML').on('dblclick', function(){ htmlProductAttribute($(this)); });$('textarea[name="product_attribute[4][product_attribute_description][1][text]"]').attr('title', 'Double Click for HTML').on('dblclick', function(){ htmlProductAttribute($(this)); });$('textarea[name="product_attribute[5][product_attribute_description][1][text]"]').attr('title', 'Double Click for HTML').on('dblclick', function(){ htmlProductAttribute($(this)); });$('textarea[name="product_attribute[6][product_attribute_description][1][text]"]').attr('title', 'Double Click for HTML').on('dblclick', function(){ htmlProductAttribute($(this)); });$('textarea[name="product_attribute[7][product_attribute_description][1][text]"]').attr('title', 'Double Click for HTML').on('dblclick', function(){ htmlProductAttribute($(this)); });$('textarea[name="product_attribute[8][product_attribute_description][1][text]"]').attr('title', 'Double Click for HTML').on('dblclick', function(){ htmlProductAttribute($(this)); });$('textarea[name="product_attribute[9][product_attribute_description][1][text]"]').attr('title', 'Double Click for HTML').on('dblclick', function(){ htmlProductAttribute($(this)); });$('textarea[name="product_attribute[10][product_attribute_description][1][text]"]').attr('title', 'Double Click for HTML').on('dblclick', function(){ htmlProductAttribute($(this)); });

Film FL- 1 Ultra Low Density Polyethylene (ULDPE)
Dimension
AseptiLiner Volume Drum Size
Diameter Depth
50 Litre 43 cm 46.5 cm
100 Litre 51 cm 63.5 cm
200 Litre 59 cm 91 cm
500 Litre 76 cm 126 cm
Physical Properties of Film
Tensile Strength >20 N/mm² when tested as per ASTM D-882
Elongation @ Break >280% when tested as per ASTM D-882
Operational
Sterilization Gamma Irradiated @25 kGy
Assurance
Bacterial Endotoxin Aqueous extracts exhibit < 0.25 EU/ml as established by Limulus Amebocyte Lysate (LAL) Test as per USP<85>
Bioburden Bioburden level is < 1000 cfu/liner as perISO 117371: 2018
Fiber Release Passes microscopic test for fibers
Particle Release The filtrate complies with USP <788> test for particulate matter in injections
Extractables with WFI Does not affect the quality of Water for injection (passes test as per USP)
Biosafety Passes the Biological Reactivity Tests, In Vivo for Class VI plastics
as described in USP<88>.

Passes the Biological Reactivity Tests, In Vitro for Cytotoxicity as
described in USP<87>.

For 50L AseptiLiner AL13HXXXXXXS302
For 100L AseptiLiner AL14IXXXXXXS302
For 200L AseptiLiner AL15JXXXXXXS302
For 500L AseptiLiner AL16KXXXXXXS302

File Type Download
Datasheet Download
