SYTH

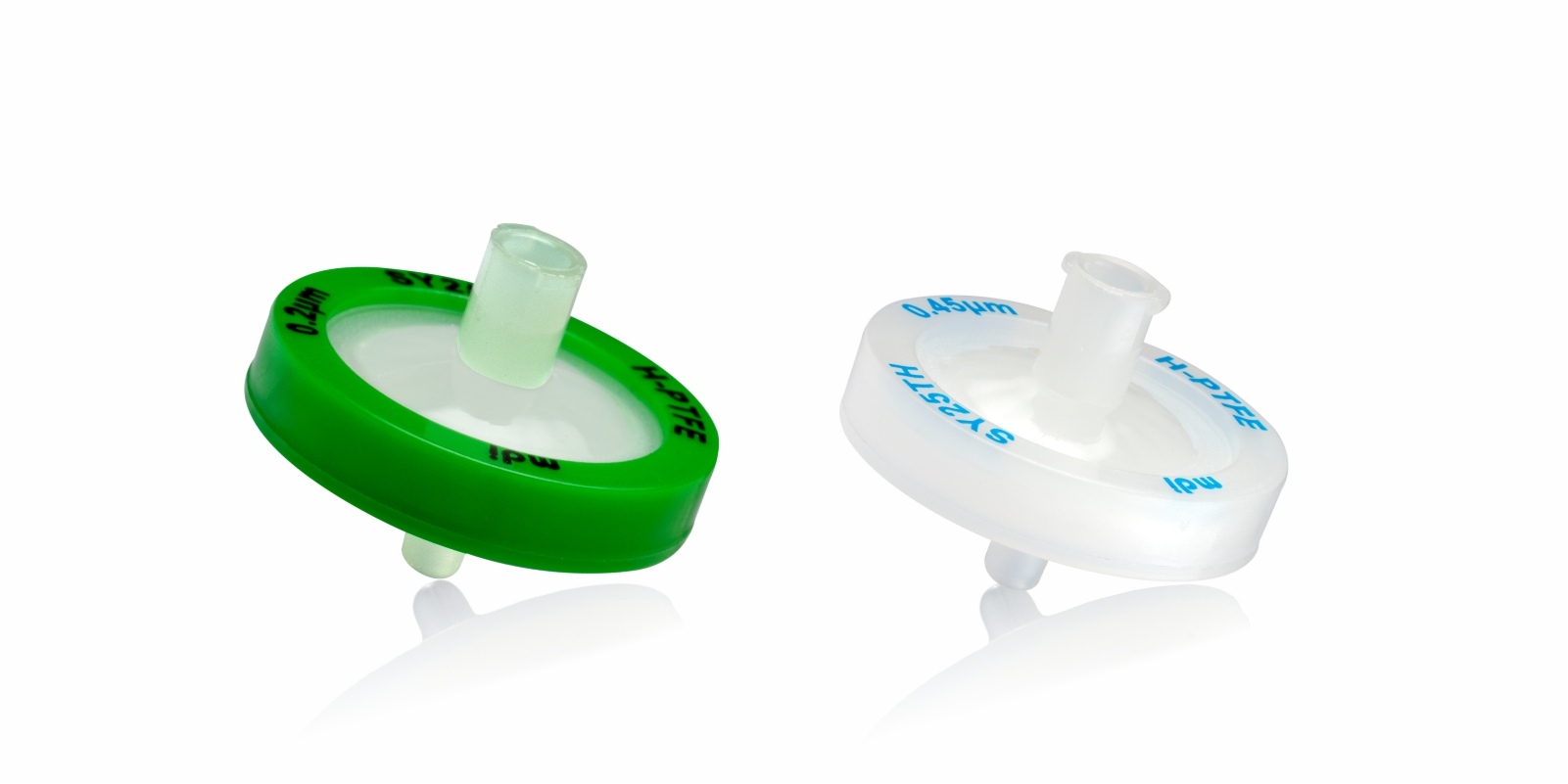

PTFE Membrane Syringe Filters Type- SYTH

MDI Hydrophilic PTFE Syringe Filters type SYTH are specially designed for use in laboratories for small volume filtration and sample preparation.The hydrophilic PTFE membrane and polypropylene (PP)construction makes it suitable even for filtration of highly aggressive solvents.

  • Absolute retention efficiency
  • 16 Channels for minimum back pressure
  • Extremely low extractables
  • Wide chemical compatibility
  • HPLC certified for low levels of UV absorbing extractables
  • Heat sealed to ensure ‘no leaching’
  • No initial flushing required

  • Sample filtration for HPLC and other critical instruments
  • Filtration of aqueous solution as well as organic solvents and chemicals

Construction
Membrane PTFE Membrane
Pore size 0.2µm, 0.45µm
Diameter
4mm 13mm 25mm
Inlet Female luer-lock
Outlet Male luer slip
Housing Polypropylene
Operational
Max. Operating Temperature 55 °C
Max. Differential Pressure 75 psi @ 25° C
Burst Pressure >12kg/cm²
Hold-up Volume(with air purge)
< 5µl < 20µl < 50µl
Effective Filtration Area
0.07 cm² 0.8 cm² 4.15 cm²
Clean Water Flow Rate @ 20 psi (0.2µm)
> 0.4 ml/min > 10 ml/min > 50 ml/min
Clean Water Flow Rate @ 20 psi (0.45µm)
> 0.8 ml/min > 30 ml/min > 100 ml/min
Sample Volume
< 1 ml < 10 ml < 100 ml
Assurance
Fiber Release Complies with USFDA CFR Title 21, Part 210.3(b)(6) and do not requires any initial Flushing.
Particle Release The filtrate Complies with USP <788> test for particulate matter in injectables.
Indirect Food Additive The plastic housing material complies with the requirements of USFDA CFR Title 21 Part 177.1520.
Oxidizable Substances Within limits as specified in USP
Quality Management System ISO-9001 Certified
Extractables
  • Filtrate (WFI ) complies with the requirements of USP for “Sterile Water for Injection”.
  • The plastic housing material complies with the requirements of USFDA CFR Title 21 Part177.1520

Type
Type Code
PTFE Membrane Syringe Filter SYTH
Size
Diameter Code
4mm 01
13mm 03
25mm 06
Pore Size
Pore Size Code
0.2µm 01
0.45µm 02
Inlet/Outlet
Code
Female luer-lock M
Male luer slip N
XX
Sterility
Code
Non Sterile 1
Pack Size
Pack Size Code
100 04
1000 06

Example :

SYTH 06 01 MN XX 1 04
